Matterhorn Shake

Warm wood texture, impervious to rot.

Request Pricing

A Roof for the Ages

CERTAINTEED DISCONTINUED MATTERHORN ROOFING EFFECTIVE 12/31/20. CONSIDER ONE OF OUR OTHER METAL SHAKE ROOF SYSTEMS.

Matterhorn Shake provides the unique textures and warm ambiance of hand chiseled cedar shake roofing. Eight separate elevation changes replicate the irregularity of real wood shakes, and pre-weathered/aged paint techniques recreate the look of true cedar siding. A four point interlocking system, tough 28 gauge steel and baked on Hylar/Kynar paint finish ensure strength and longevity.

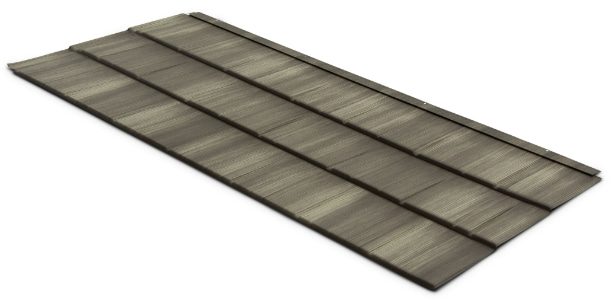

Matterhorn Shake Product Mhshk P001 Panel Side Angle

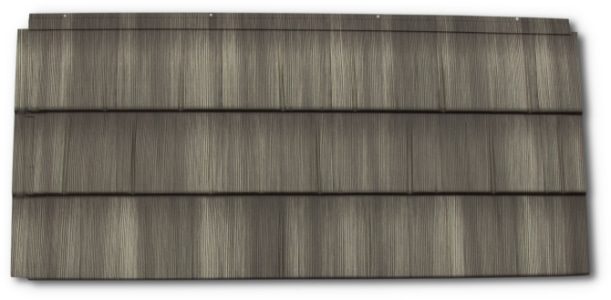

Matterhorn Shake Product Mhshk P002 Panel Overhead

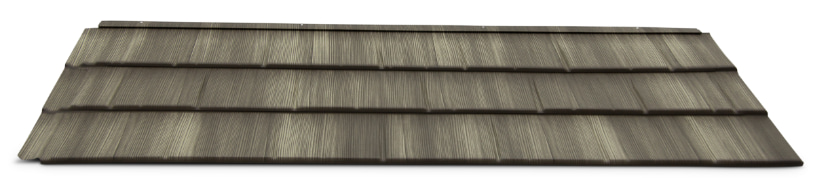

Matterhorn Shake Product Mhshk P003 Panel Front Angle

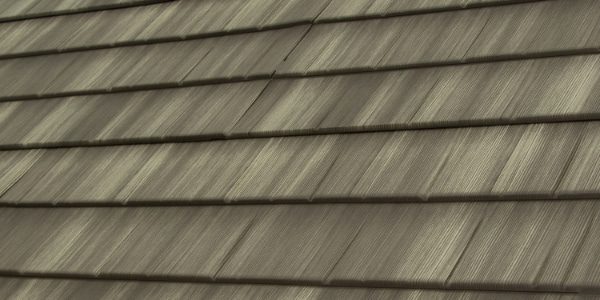

Matterhorn Shake Product Mhshk P004 Assembly Side Angle

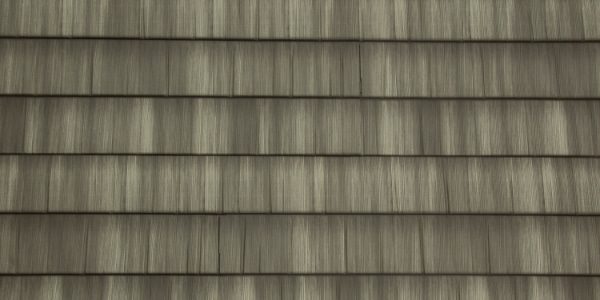

Matterhorn Shake Product Mhshk P005 Assembly Overhead

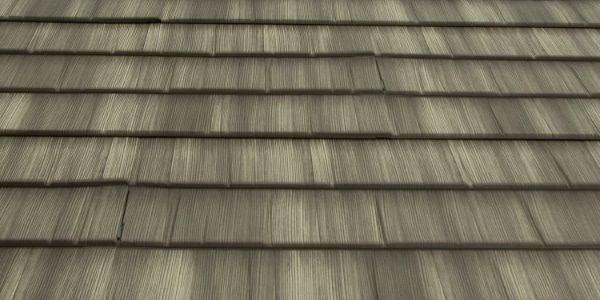

Matterhorn Shake Product Mhshk P006 Assembly Front Angle

Design & Size

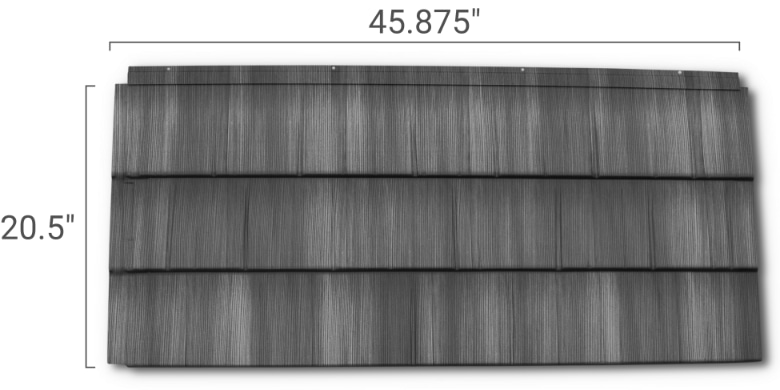

We provide Matterhorn Shake in 1/2 SQ boxes (50 square feet). Each box contains 8 shake panels. Each panel is 22.125″ high by 47.5″ wide and covers 20.5″ high x 45.875″ wide once installed.

Size

Actual: 22.125" high by 47.5" wide
Coverage: 20.5" high by 45.875" wide

Gauge & Weight

28 Gauge - 0.90 lb / Sq Ft

Warranty & Finish

Matterhorn Shake carries a lifetime limited warranty that covers manufacturing defects, paint, excessive fade & chalk, hail, and 110mph wind (130mph if using 7 screws per panel instead of 4). This warranty is transferable to 1 subsequent homeowner but becomes a 50-year warranty for defects, paint, hail and wind and a 30-year warranty for fade/chalk. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel.

Finish & Warranty

Lifetime Limited
1 Time Transferable

Reflectivity

26-37%
Hi-Reflective

Purpose & Use

A 4-way interlocking design and hidden fasteners make Matterhorn Shake a great choice for roofs as low as 3:12 (full ice & water shield underlayment required on slopes less than 4:12). Matterhorn Shake is designed for installation on solid deck applications.

Matterhorn Shake is most often chosen for residential applications but functions well on light commercial roofs also.

Matterhorn Shake is Florida Building Code approved as well as passing Texas Windstorm and UL90 wind uplift testing. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Category

Colors

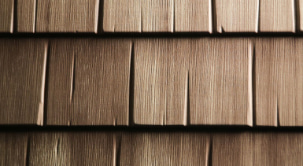

Cedar

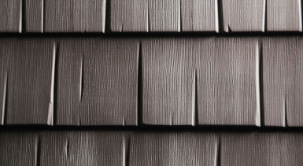

Weathered Wood

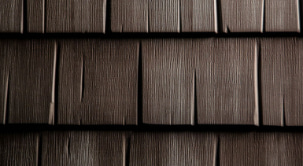

Timber Ash

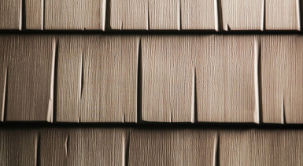

Shorewood

Matterhorn Shake® finishes are Hi-Reflective, reflecting 26-37% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
FL# 21470.1
See report for requirements
Hi-Reflective

Matterhorn Shake® finishes are Hi-Reflective, reflecting 26-37% of the sun’s rays.
