Image II Standing Seam

An elegant hidden fastened metal roof panel.

Request Pricing

Simplicity in Design

Image II is a standing seam metal roof system that combines simple traditions with today’s engineering and materials. A snap-lock design features a fastening side flange that is then hidden by the rib of the next panel.

Image Ii Product Ss P001 Panel Side Angle

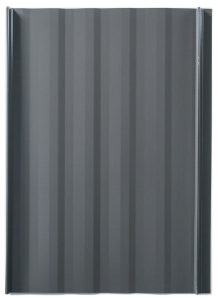

Image Ii Product Ss P002 Panel Overhead

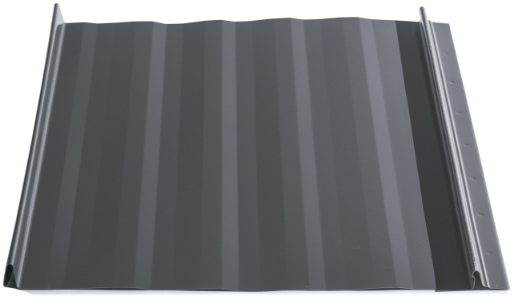

Image Ii Product Ss P003 Panel Front Angle

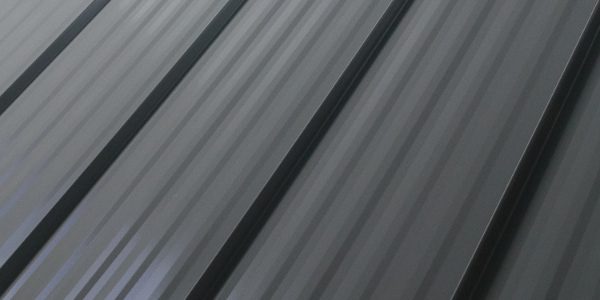

Image Ii Product Ss P004 Assembly Side Angle
Image Ii Product Ss P005 Assembly Overhead
Image Ii Product Ss P006 Assembly Front Angle

Design & Size

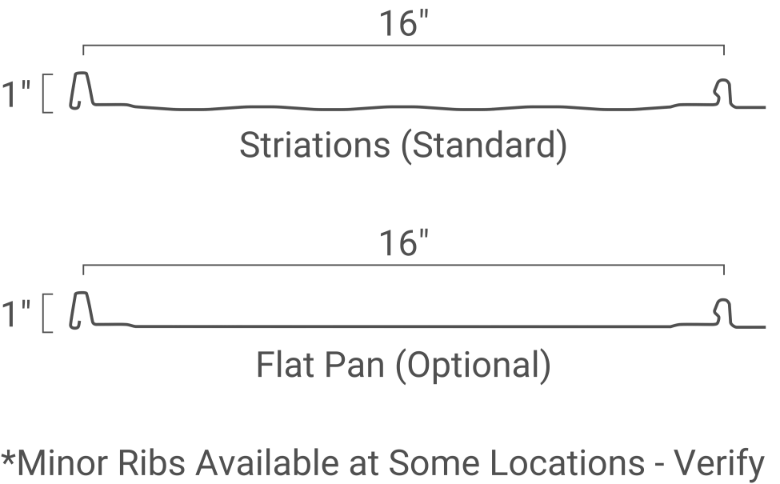

We provide Image II custom cut to the inch per specifications. Any length is available from 3’ up to 45’. Image II’s design features 1” high snap-lock style ribs, spaced 16” on center. 12” wide panels are available at some locations. Thickness options include 26 and 24 gauge.

Size

16", 12" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 0.92 Lb / Sq Ft
24 Gauge - 1.19 Lb / Sq Ft

Warranty & Finish

Painted Image II carries a 40 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 25 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 40 years
Galvalume: 25 years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Image II is an all purpose standing seam metal roof system. It blends with almost any architecture with the strength needed for Florida and Miami-Dade County Hurricane Zones.

Image II is designed to be installed over solid decking – for many open frame installations of standing seam consider Vertical Seam as an alternate.

Image II standing seam is most chosen for residential and light commercial roofs, though it blends in well in most architectural design.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Architectural

Colors
Arctic White
Light Stone
Sahara Tan
Cocoa Brown
Pearl Gray
Charcoal Gray
Burnished Slate
Black
Marine Green
Patriot Red
Barn Red
Burgundy
Green
Royal Blue
Gallery Blue
Copper Metallic (Premium)
Galvalume (Non-Painted)

Painted Image II® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
NOA# 17-0503.04
Min 26ga., roof over 19/32" or greater plywood or wood plank
Testing: Florida Approvals
FL# 25960.1
Min 26 ga., over 7/16" thick OSB or 15/32" thick plywood
FL# 20484.2
Min 26ga., over 7/16" thick OSB or 15/32" thick plywood
FL# 20484.3
Min 0.032" Aluminum., over min 15/32" thick plywood deck or 7/16" thick OSB
Hi-Reflective

Painted Image II finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.

Customer Reviews
110 George R Image Ii Gallery Blue 001

George R. Dickerson, Maryland

I am happy to send you photos, etc. The roof turned out real nice.

View Product
101 Commercial Roof Management Jason B Image Ii Black 001

Commercial Roof Management - Jason B. Princeton, Texas

The product worked out great – I wish I had more of them to install, thanks!

View Product
098 Adams Mica Designs Don A Image Ii Green 001

Adams Mica Designs - Don A. Robbinsville, New Jersey

The installation doesn’t go very fast but everything fits together nicely and the finished project looks great. It is a nice system they sell. I will buy again when another metal roof comes along.

View Product
