ArrowLine Slate

Historically accurate, incredibly beautiful.

Request Pricing

Investment Grade Roofing

ArrowLine Slate provides the stately look of slate in an affordable, lightweight, walkable steel material. ArrowLine interlocks on all 4 sides for superior wind and storm protection. ArrowLine Slate weighs about 1 lb. per square foot, allowing installation over standard decking and supports.

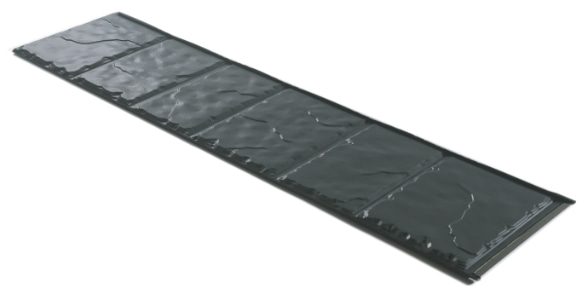

Arrowline Slate Product Alslt P001 Panel Side Angle

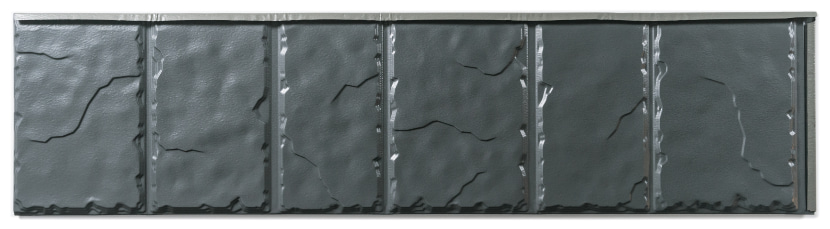

Arrowline Slate Product Alslt P002 Panel Overhead

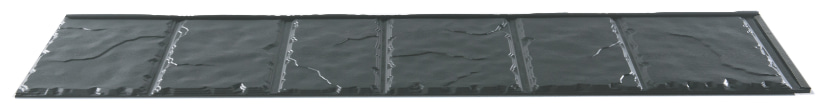

Arrowline Slate Product Alslt P003 Panel Front Angle

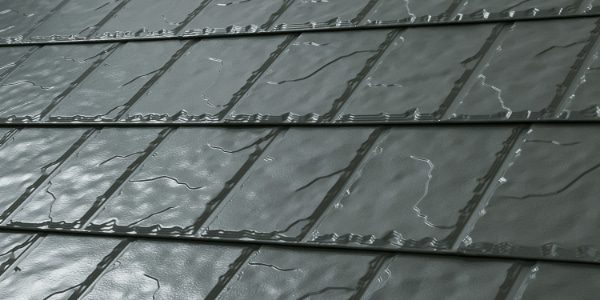

Arrowline Slate Product Alslt P004 Assembly Side Angle

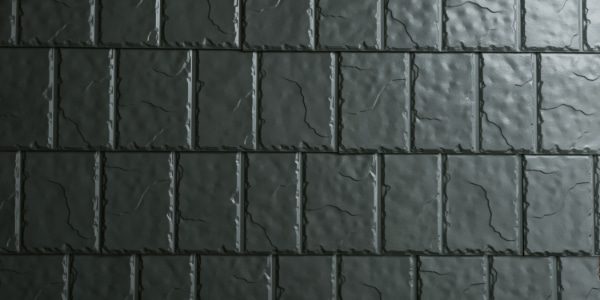

Arrowline Slate Product Alslt P005 Assembly Overhead

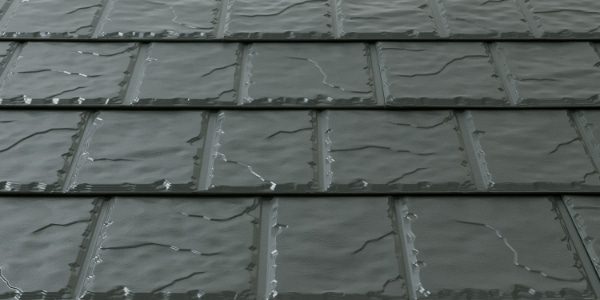

Arrowline Slate Product Alslt P006 Assembly Front Angle

Design & Size

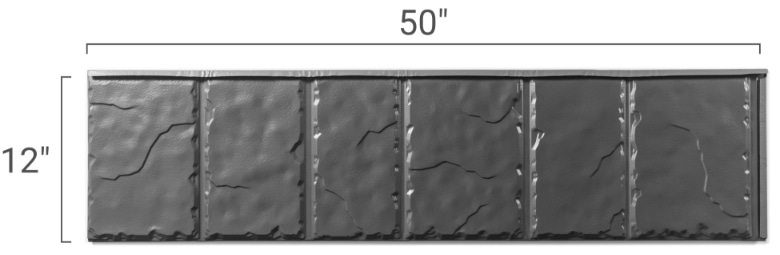

We provide ArrowLine Slate in 1/2 SQ boxes (50 square feet). Each box contains 12 shingles. Each shingle is 12.8″ high by 50.7″ wide and covers 12″ high x 50″ wide once installed.

Size

Actual: 12.8" high by 50.7" wide
Coverage: 12" high by 50" wide

Gauge & Weight

28 Gauge - 0.90 lb / Sq Ft

Warranty & Finish

ArrowLine Slate carries a non-prorated lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 50 years after installation but becomes a pro-rated warranty.

Finish & Warranty

Lifetime Limited
50 Years Transferable

Reflectivity

25-35%
Hi-Reflective

Purpose & Use

A 4-way interlocking design and hidden fasteners make ArrowLine Slate a great choice for roofs as low as 4:12. As with most painted metal shingles, ArrowLine is designed for installation on solid deck applications.

ArrowLine Slate is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile 28 gauge steel core allows ArrowLine Slate to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

4:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

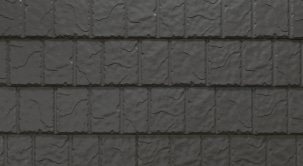

Charcoal Gray

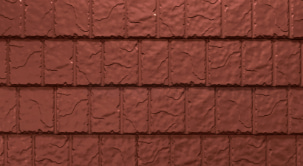

Classic Red
Hartford Green

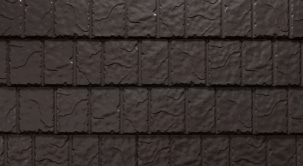

Statuary Bronze

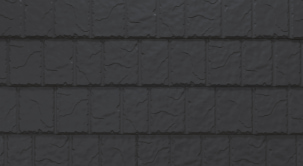

Stone

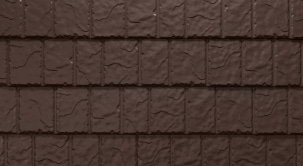

Royal Brown

ArrowLine Slate® finishes are Hi-Reflective certified, reflecting 25-35% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 4077.1
See report for requirements
Hi-Reflective

ArrowLine Slate® finishes are Hi-Reflective certified, reflecting 25-35% of the sun’s rays.
