Stile Spanish Tile

Taking metal tile to a whole new level.

Request Pricing

A Legacy of Beauty

Stile Spanish Tile offers the natural beauty of clay tile roofing in lightweight steel material. Stile meets every code from Florida Building Code to Miami-Dade Hurricane Zone and Texas Windstorm.

Crafted in 3’-20’ sheets, Stile is formed from tough 26 gauge steel protected by a baked-on Hylar/Kynar paint finish to ensure strength and longevity.

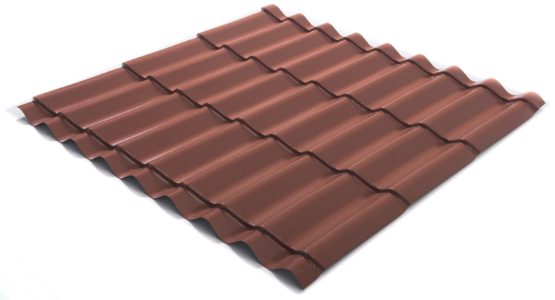

Stile Spanish Tile Product Stile P001 Panel Side Angle

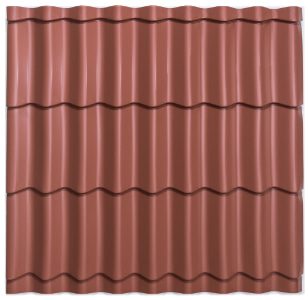

Stile Spanish Tile Product Stile P002 Panel Overhead

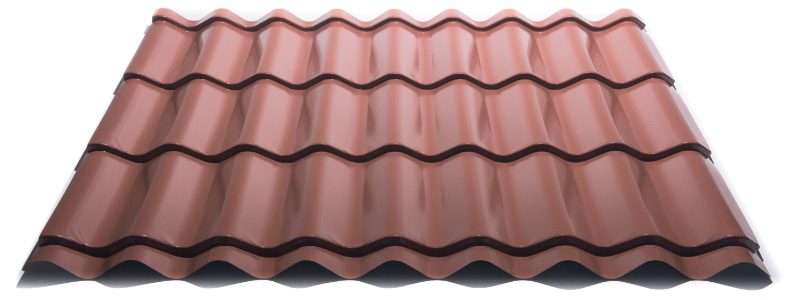

Stile Spanish Tile Product Stile P003 Panel Front Angle

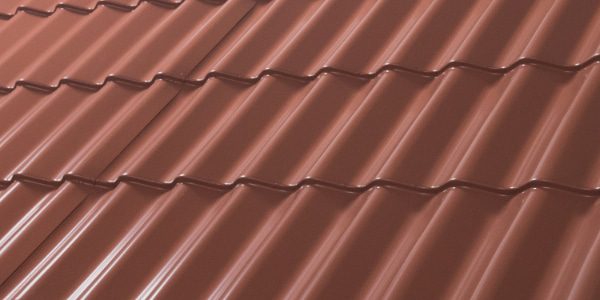

Stile Spanish Tile Product Stile P004 Assembly Side Angle

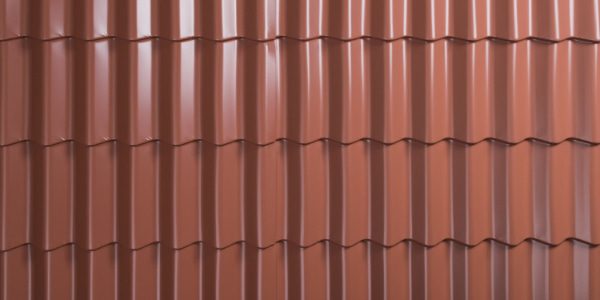

Stile Spanish Tile Product Stile P005 Assembly Overhead
Stile Spanish Tile Product Stile P006 Assembly Front Angle

Design & Size

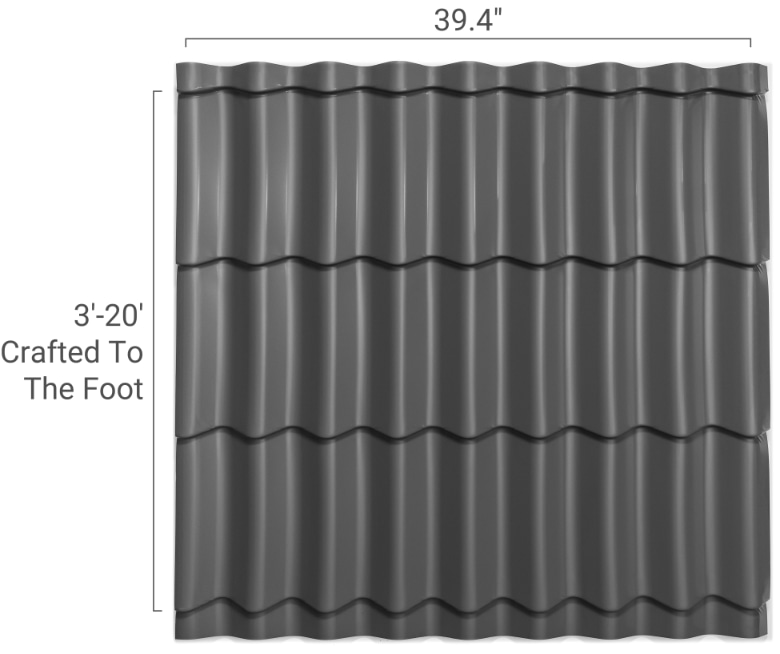

We provide Stile custom formed to the foot from 3′ to 20′ long. Stile’s design features 1.1875″ high barrels, spaced 5″ on center. Barrels have a 1/2″ step up every 12″, for a total overall height of 1.6875″ at the highest point. Panels include 2″ of additional length at the lower end of panels and 2-4″ additional at the upper end of panels. Stile comes in 26 gauge standard.

Size

39.4" Width (Coverage)
Cut to Foot From 3'-20'

Gauge & Weight

26 Gauge - 0.91 lb / Sq Ft

Warranty & Finish

Stile Spanish Tile carries a 45 year limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel.

Finish & Warranty

45 Years

Reflectivity

29-36%
Hi-Reflective

Purpose & Use

Long cut-to-foot sheets and tight fitting overlaps make Stile Spanish Tile a great choice for roofs as low as 3:12. Stile is designed for installation on solid deck applications.

Stile Spanish Tile is most often chosen for residential and light commercial applications – any structure that requires the look of clay tile without the extreme weight.

Stile is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

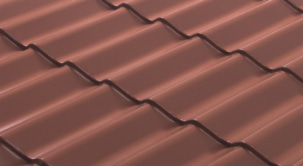

Spanish Clay
Slate Grey

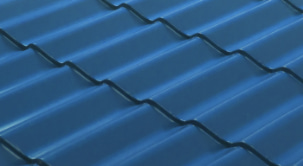

Ocean Blue

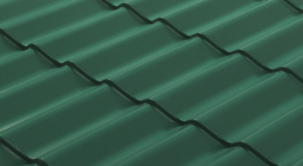

Classic Green
Regal Red
Tudor Brown

Stile® finishes are Hi-Reflective, reflecting 29-36% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-dade Approvals
NOA# 23-0207.05
New construction over 19/32” or greater plywood or wood plank, or for reroofing over 15/32” or greater plywood
Testing: Florida Approvals
FL# 42103.1
Over 15/32" min. thick plywood
FL# 42103.2
Over 19/32" min. thick plywood
Hi-Reflective

Stile Spanish Tile® finishes are Hi-Reflective, reflecting 29-36% of the sun’s rays.
