Eave Strut

A high/low side secondary framing member.

Request Pricing

Where Roof Meets Wall

Eave Struts are secondary steel framing members used for support at eaves and high side peaks. Single and double slope are available up or down. Available in red oxide or galvanized, Eave Struts are cut to the nearest 1/8″.

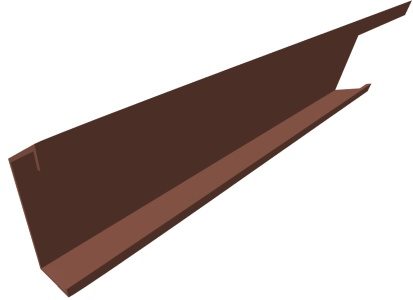

Eave Strut Product Fea P001 Component Side Angle Red Oxide

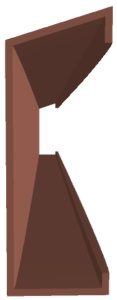

Eave Strut Product Fea P002 Component Front Red Oxide

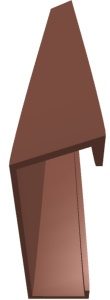

Eave Strut Product Fea P003 Component Front Angle Red Oxide

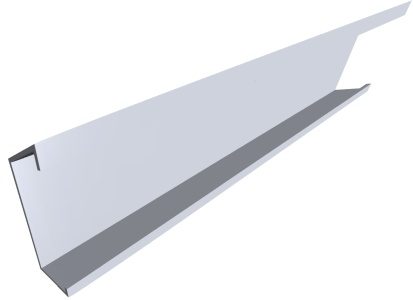

Eave Strut Product Fea P004 Component Side Angle Galvanized

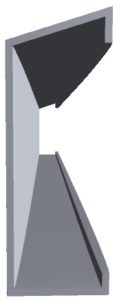

Eave Strut Product Fea P005 Component Front Galvanized

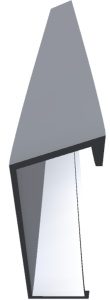

Eave Strut Product Fea P006 Component Front Angle Galvanized

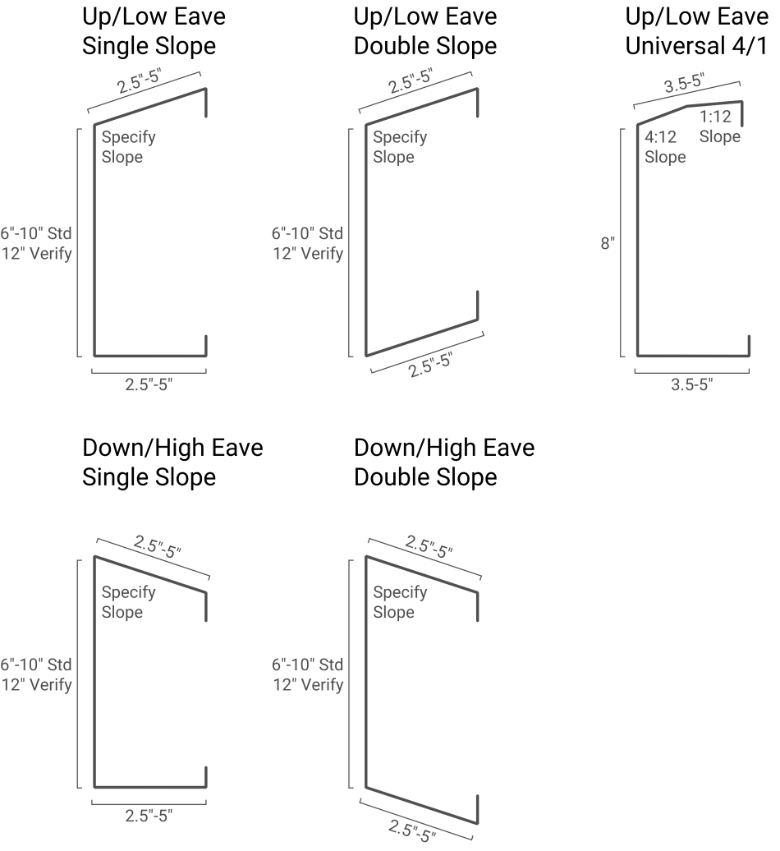

Design & Size

Eave Strut lengths are cut to length from 6′-39′ (45′ max at some locations) in 1/8″ increments, though 20′ and 25′ are the most commonly chosen lengths.



Size

Width Varies by Use
Length: 6'-39' in 1/8" Increments

Gauge & Weight

16ga: Weight Varies By Profile
14ga: Weight Varies By Profile
12ga: Weight Varies By Profile

Warranty & Finish

Metal framing components carry no specific warranty. Finish options include red iron (red oxide) and galvanized. Red iron is the more common finish and typically available in more sizes and gauges.

Purpose & Use

Eave Struts are secondary steel framing members used at eaves and high side peaks. Options include single slope up, single slope down, double slope up, or double slope down. Slopes are available from 0.25:12 to 4:12.

The shape of Eave Struts does not allow end lapping – they are butted together. Fastening is most commonly using bolts, though welding may be applicable in some construction methods.

Minimum Slope

0.25:12 to 4:12

Intent

Commercial
Industrial

Colors
Red Iron (Most Common - AKA Red Oxide)
Galvanized (Verify Availability)

Available finishes vary by branch, size, and gauge. Color accuracy is limited by scanning and viewing conditions.
