Edco Board & Batten

A steel take on a classic siding system.

Request Pricing

Minus The Rot

Edco Board & Batten provides the classic craftsman look of cedar board & batten with the longevity and watertight design of a steel siding system.

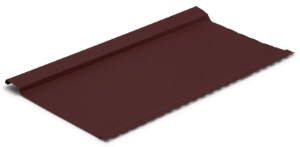

Edco Board And Batten Product E1 P001 Panel Side Angle

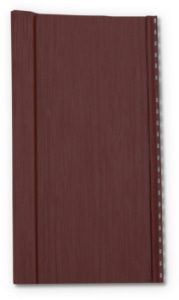

Edco Board And Batten Product E1 P002 Panel Overhead

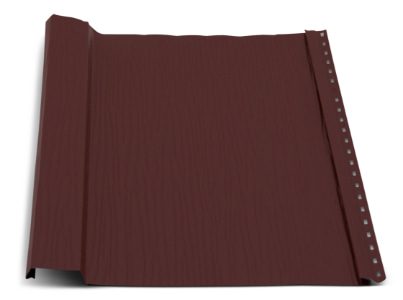

Edco Board And Batten Product E1 P003 Panel Front Angle

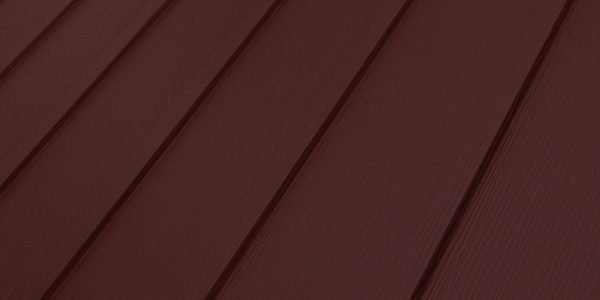

Edco Board And Batten Product E1 P004 Assembly Side Angle

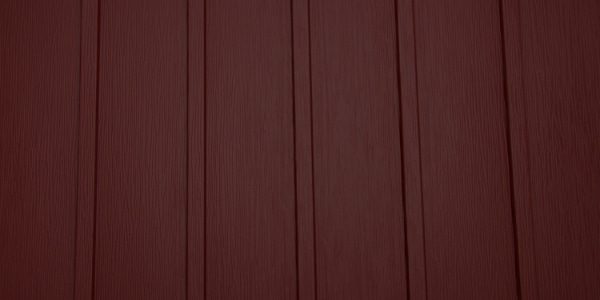

Edco Board And Batten Product E1 P005 Assembly Overhead

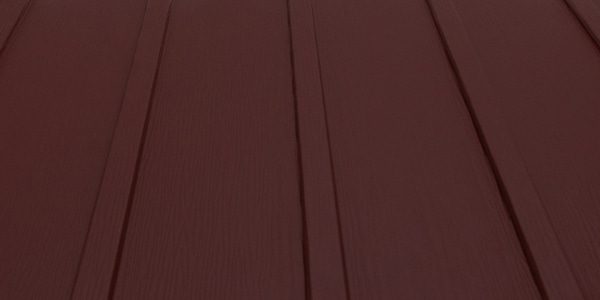

Edco Board And Batten Product E1 P006 Assembly Front Angle

Design & Size

Edco Board & Batten panels are 12″ wide and 10′ high and packaged 10 pieces per box (100 square feet). Board & Batten comes in a 28 gauge standard thickness.

Size

12" Width (Coverage)
10' Height

Gauge & Weight

28 Gauge - 0.95 Lb / Sq Ft

Warranty & Finish

Edco Board & Batten carries a lifetime non-prorated limited warranty that covers material and labor and a fade/chalk warranty up to 35 years (ENTEX, Prism finishes) or 10 years (PVC finish). The painted finish is a baked on enamel paint over primer and G90 Galvanized steel.

Finish & Warranty

Labor/Materials: Lifetime Non-Prorated Limited
Fade: ENTEX or Prism - 35 Year, PVC: 10 Years

Purpose & Use

Edco Board & Batten is most commonly chosen for residential and light commercial use. A steel substrate and hidden flange fastening system lock out wind and water.

Board & Batten is designed to be installed over solid decking.

Minimum Slope

N/A

Substrate

Solid Deck

Intent

Residential
Light Commercial

Colors

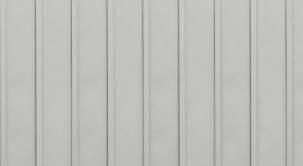

Glacier White, 10', 12' 6" (ENTEX)

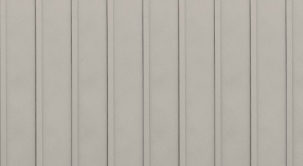

Desert Tone, 10' (ENTEX)
Wickertone, 10' (ENTEX)

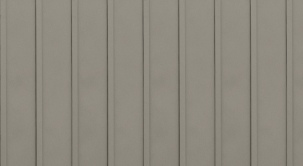

Sandtone, 10' (ENTEX)

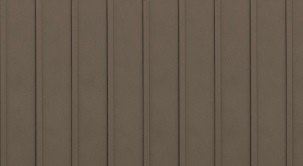

Timber, 10' (ENTEX)

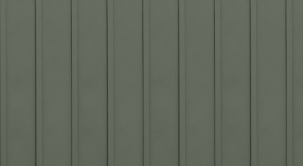

Sage, 10' (ENTEX)
Willow, 10' (ENTEX)

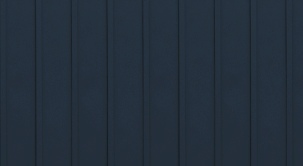

Classic Blue, 10' (ENTEX)

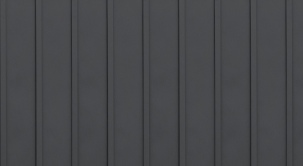

Charcoal Gray, 10', 12' 6" (ENTEX)
Driftwood Gray, 10', 12' 6" (ENTEX)
Mahogany, 10' (ENTEX)

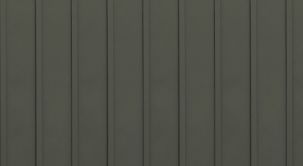

T-Tone, 10', 12' 6" (ENTEX)

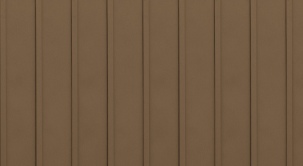

Cedarwood, 10' (ENTEX)
Classic Red, 10' (ENTEX)

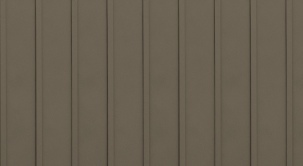

Canyon, 10' (ENTEX)

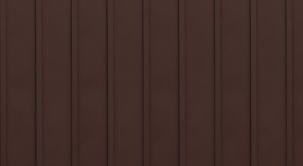

Rustic Brown, 10' (ENTEX)

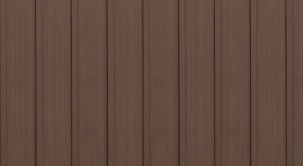

Mahogany HD, 10' (ENTEX HD)

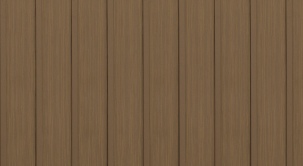

Cedarwood HD, 10' (ENTEX HD)
Canyon HD, 10' (ENTEX HD)

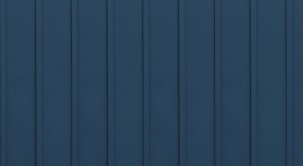

Sapphire, 10' (Prism)
Onyx, 10' (Prism)

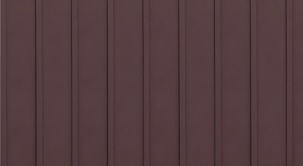

Bourdeaux, 10' (Prism)

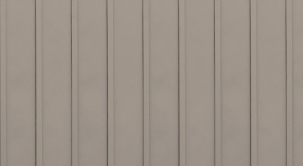

Tuscan, 10' (Prism)
Sedona, 10' (Prism)

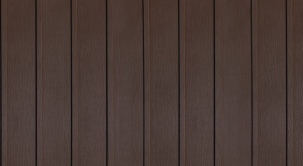

Guinness, 10' (Prism)

Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: ASTM Listed
ASTM A653 CS Type B
28ga, G60 Galvanized Steel
ASTM D2244
Color Consistency
