Barrel Vault

Experience craftsmanship at its finest.

Request Pricing

Tailor-Made for Your Roof

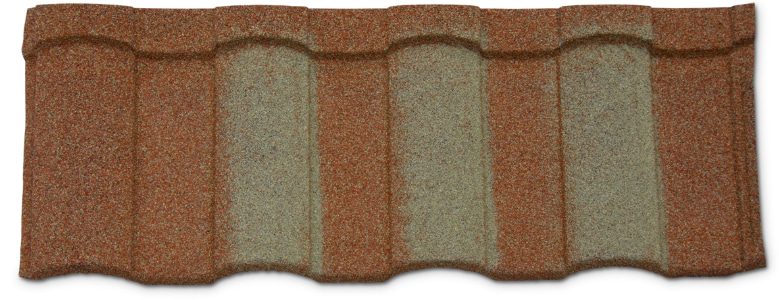

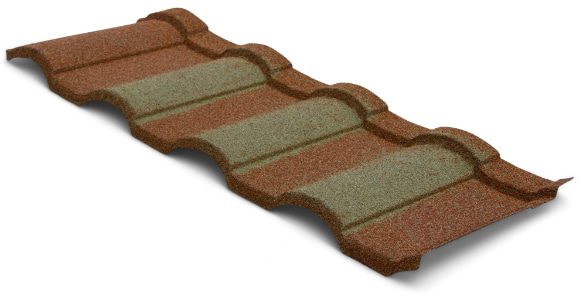

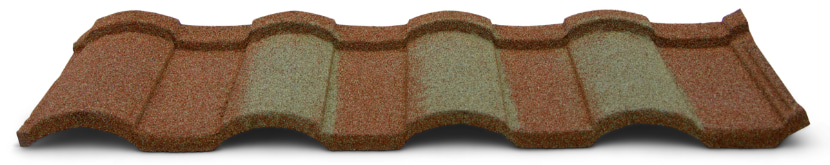

Barrel Vault is designed for optimal performance and style, artistically crafted to accentuate from any view. Exceptional stone granule blends combine with a 26 gauge Galvalume steel core to deliver hurricane resistance and long term protection for your roof.

Design & Size

We provide Barrel Vault by the roofing square (100 square feet). Each shingle is 14.125″ high by 52.375″ wide and covers 12.25″ high x 49.5″ wide once installed. To cover one square requires 22 Barrel Vault panels.

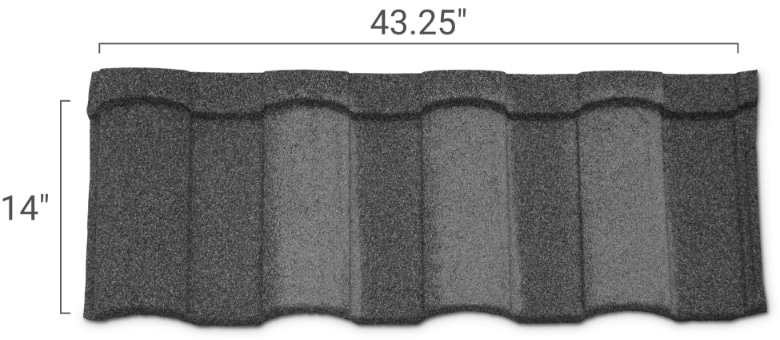

Barrel Vault Metal Tile Dimensions

Size

Actual: 15.625" high by 43.8125" wide
Coverage: 14" high by 43.25" wide

Gauge & Weight

26 Gauge – 1.5 lb / Sq Ft

Warranty & Finish

Barrel Vault carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.

Finish & Warranty

50 Years Limited
Fully Transferable

Reflectivity

4-41%
Vented Airspace Provides Insulation Layer

Purpose & Use

Tight-fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Barrel Vault a great choice for roofs as low as 3:12. Barrel Vault is designed for installation on solid deck applications – with or without a batten airspace.

You’ll find Barrel Vault most often on residential applications, but it also functions well for light commercial applications as well.

Barrel Vault is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck – Direct to Deck
Solid Deck – Over Battens

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

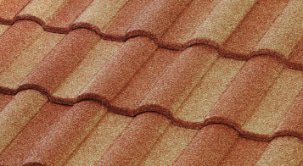

Sunset Gold

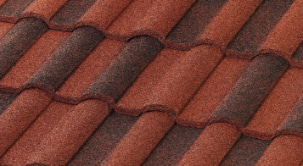

Barcelona
Santa Fe

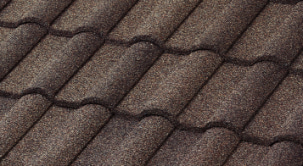

Timberwood

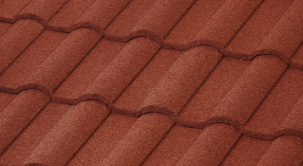

Spanish Red
Barclay

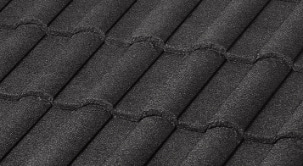

Charcoal

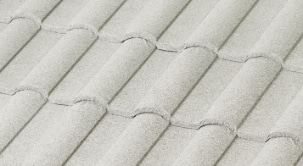

Dover (Premium)

Barrel Vault’s Dover finish is Energy Star certified at 41% reflective, though the other colors are not. Barrel Vault features a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 27408.1
See report for requirements
Energy Star®

Barrel Vault’s Dover finish is Energy Star certified at 41% reflective, though the other colors are not. Barrel Vault features a vented air space for insulation value.
