Sentry Shake

A simple low-profile metal shake.

Request Pricing

Protect and Defend

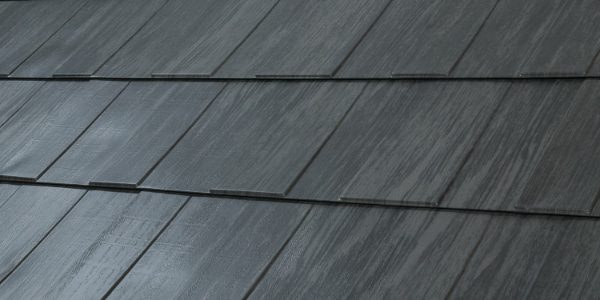

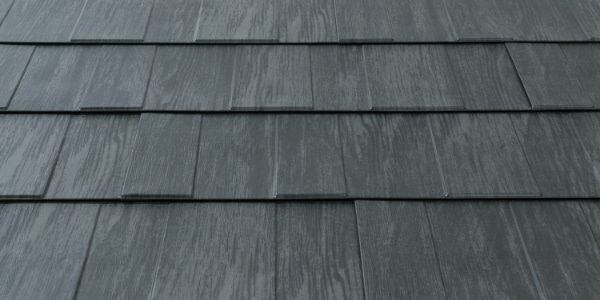

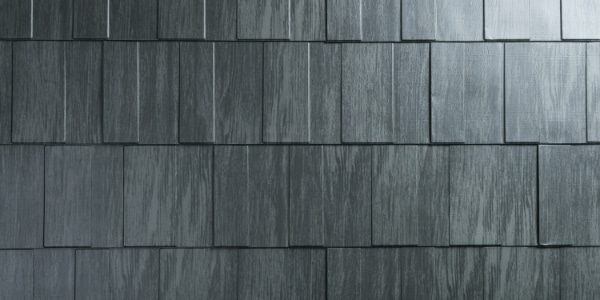

Sentry Shake combines high tech metal shake roof technology with a minimalistic curved stamp pattern and a 3D print design. Sentry interlocks on all 4 sides for superior wind and storm protection.

Design & Size

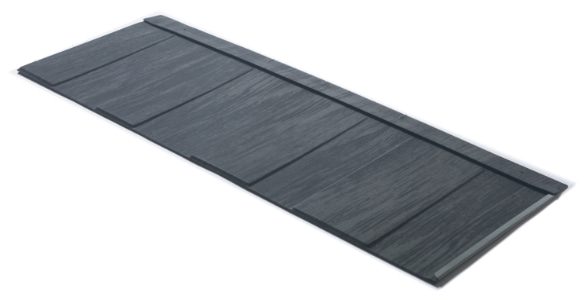

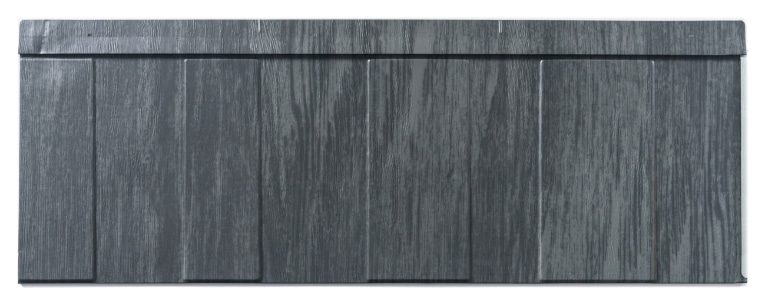

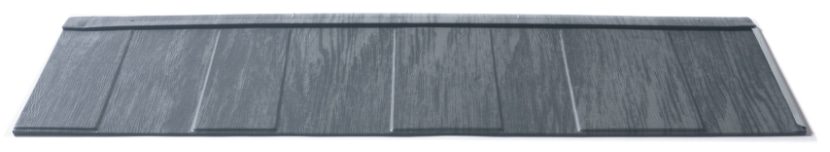

We provide Sentry Shake in 1/2 SQ boxes (50 square feet). Each box contains 15 shingles. Each shingle is 14.2″ high by 39.5″ wide and covers 12.25″ high x 39″ wide once installed.

Size

Actual: 14.2" high by 39.5" wide

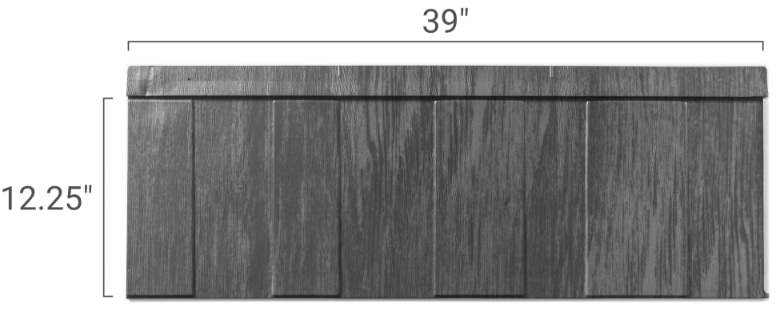

Coverage: 12.25" high by 39" wide

Gauge & Weight

29 Gauge - 0.76 lb / Sq Ft

Warranty & Finish

Sentry Shake carries a lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 40 years after installation.

Finish & Warranty

Lifetime Limited
40 Years Transferable

Reflectivity

24-32%

Purpose & Use

A 4-way interlocking design and hidden fasteners make Sentry Shake a great choice for roofs as low as 3:12. As with most painted metal shingles, Sentry is designed for installation on solid deck applications.

Sentry Shake is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows Sentry Shake to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

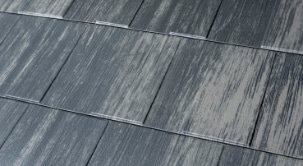

Aged Cedar

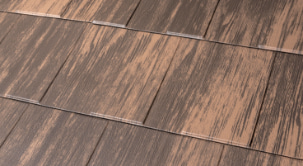

New Cedar

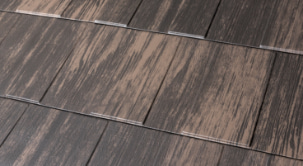

Weathered Cedar

Two of Sentry Shake’s three finishes meet Energy Star requirements, reflecting 28-32% of the sun’s rays, but are not Energy Star® certified.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 17418.1
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Energy Star®

Two of Sentry Shake’s three finishes meet Energy Star requirements, reflecting 28-32% of the sun’s rays, but are not Energy Star® certified.
