Vertical Seam Standing Seam

Attractive multipurpose standing seam roof panel.

Request Pricing

Rock Solid Design

Vertical Seam is the SUV of standing seam – cost efficient, attractive, and able to handle a variety of needs. Vertical Seam has modern 1.75″ high ribs in widths of 12″, 16″, and 18″ apart. A hidden fastening clip allows unlimited expansion and contraction, allowing for longer panels. Vertical Seam installs quickly and meets the wind demands in Florida and Miami-Dade County Hurricane Zones. Taller ribs allow Vertical Seam to be installed over open framing as well as solid decking.

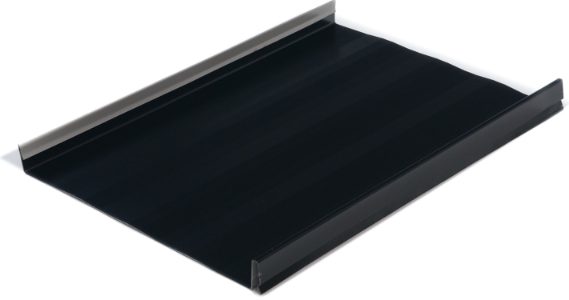

Vertical Seam Product Vs P001 Panel Side Angle

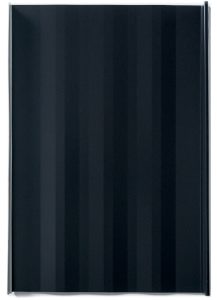

Vertical Seam Product Vs P002 Panel Overhead

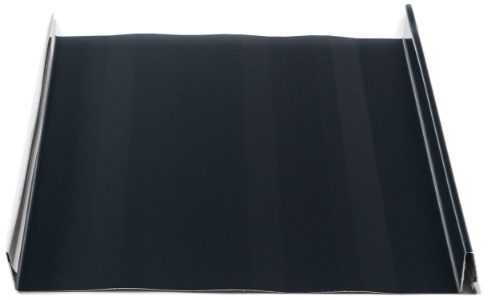

Vertical Seam Product Vs P003 Panel Front Angle

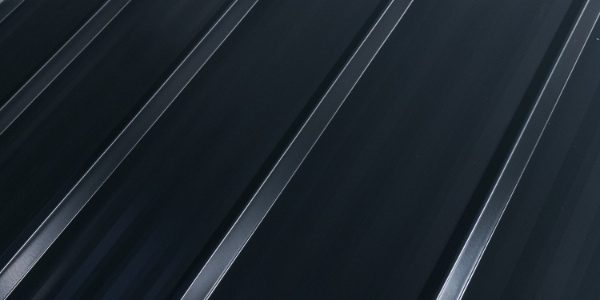

Vertical Seam Product Vs P004 Assembly Side Angle

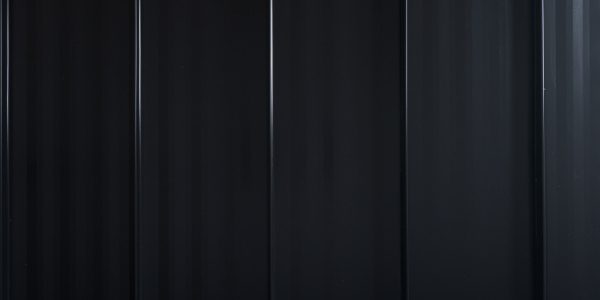

Vertical Seam Product Vs P005 Assembly Overhead

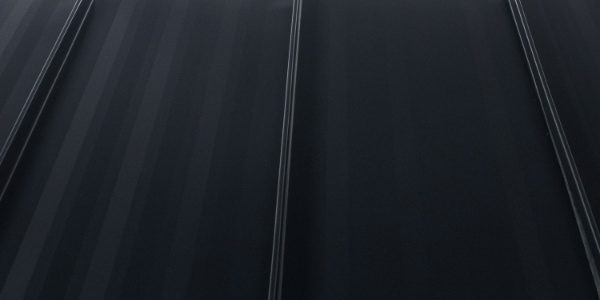

Vertical Seam Product Vs P006 Assembly Front Angle

Design & Size

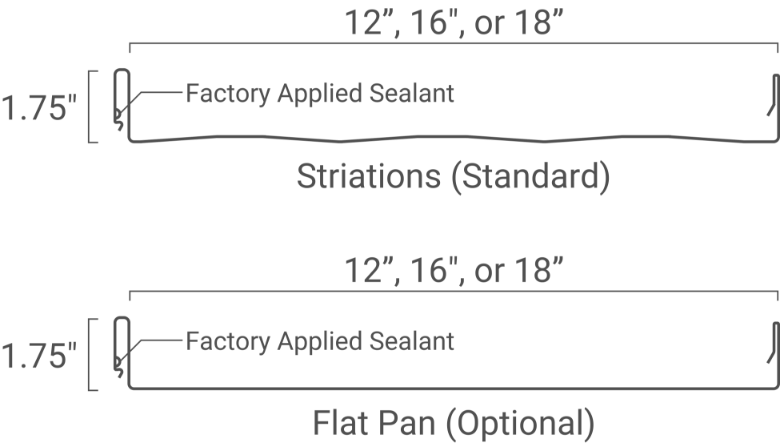

We provide Vertical Seam custom cut to the inch per specifications. Any length is available from 3’ up to 45’. Vertical Seam’s design features 1.75″ high snap-lock style ribs, spaced 12″, 16″, or 18″ on center. Thickness options include 26 and 24 gauge as standard and 22 gauge optional.

Size

18", 16", 12" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 0.94-1.06 Lb / Sq Ft (check width)
24 Gauge - 1.22-1.38 Lb / Sq Ft (check width)

Warranty & Finish

Painted Vertical Seam carries a 40 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 25 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 40 years
Galvalume: 25 years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Vertical Seam is one of our most versatile standing seam systems. Whether you need it for a home, business, or commercial application; Vertical Seam may fit the bill.

Vertical Seam can be installed over solid decking on slopes as low as 1:12 and open framing on slopes as low as 3:12.

Taller ribs with optional factory applied sealant provide strength and lock out the weather.

Minimum Slope

1:12 over solid decking, 3:12 over open framing

Substrate

Solid Deck
Open Frame

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Architectural

Colors
Polar White (26ga)
White (26ga)
Light Stone (26ga)
Mocha Tan (26ga)
Ash Grey (26ga)
Charcoal Gray (26ga)
Burnished Slate (26ga)
Black (26ga)
Brown (26ga)
Patriot Red (26ga)
Red #24 (26ga)
Burgundy (26ga)
Hawaiian Blue (26ga)
Ocean Blue (26ga)
Patina Green (26ga)
Forest Green (26ga)
Galvalume (Non-Painted)
Snowdrift White W81 (24ga)
Linen White 81 (24ga)
Sandstone W51 (24ga)
Parchment W74 (24ga)
Taupe 74 (24ga)
Khaki 88 (24ga)
Mansard Brown 133 (24ga)
Medium Bronze H4 (24ga)
Weathered Copper W150 (24ga)
Dark Bronze 50 (24ga)
Ash Grey 25 (24ga)
Old Town Grey W25 (24ga)
Old Zinc Grey W29 (24ga)
Slate Grey W38 (24ga)
Matte Black 106 (24ga)
Aged Copper 65 (24ga)
Patina Green W58 (24ga)
Hemlock Green M7 (24ga)
Classic Green 66 (24ga)
Felt Green W66 (24ga)
Patriot Red 73 (24ga)
Terra Cotta W72 (24ga)
Colonial Red W75 (24ga)
Brandywine P8 (24ga)
River Teal 59 (24ga)
Metallic Silver K7 (24ga Premium)
Champagne Metallic 168 (24ga Premium)
Mistique Plus W31 (24ga Premium)
Copper Penny W92 (24ga Premium)
Antique Patina M1 (24ga Premium)
Tahoe Blue W71(24ga)
Ocean Blue 35 (24ga)
Regal Blue W35 (24ga)

Painted Vertical Seam® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
NOA# 18-1227.01
Min 24ga., 12" or 16" wide, over 19/32" or greater plywood or wood plank
Testing: Florida Approvals
FL# 11560.12
Min 26 ga., max 16" wide, over 15/32" thick plywood
FL# 11560.10
Min 24 ga., max 16" wide, over 15/32" thick plywood
FL# 11560.11
Min 24 ga., max 18" wide, over 15/32" thick plywood
FL# 11560.13
Min 24 ga., max 16" wide, over 15/32" thick plywood
FL# 11560.14
Min 24 ga., max 18" wide, over 15/32" thick plywood
Hi-Reflective

Painted Vertical Seam finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
