North Ridge Slate

Rich appearance of mountain quarry slate.

Request Pricing

Remarkable Engineering, Inspired by Nature

North Ridge Slate from True Nature offers an incredible slate rock shingle with the strength of 28-gauge steel. North Ridge interlocks on all 4 sides for superior longevity and strength. Smart engineered features including pre-drilled holes, water shedding channels, and integrated top-lock make North Ridge an excellent choice for your project.

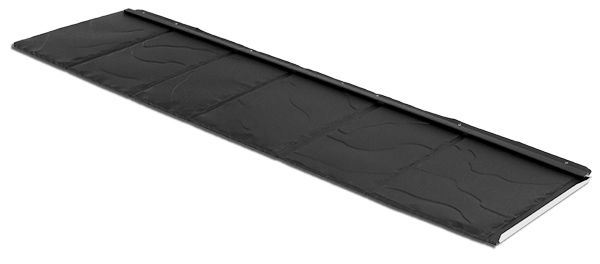

North Ridge Slate Product Tnslt P001 Panel Side Angle

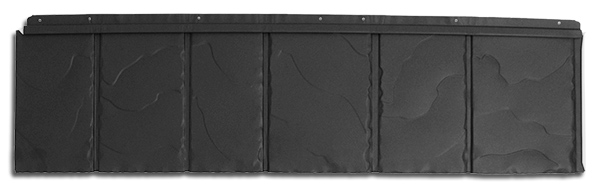

North Ridge Slate Product Tnslt P002 Panel Overhead
North Ridge Slate Product Tnslt P003 Panel Front Angle

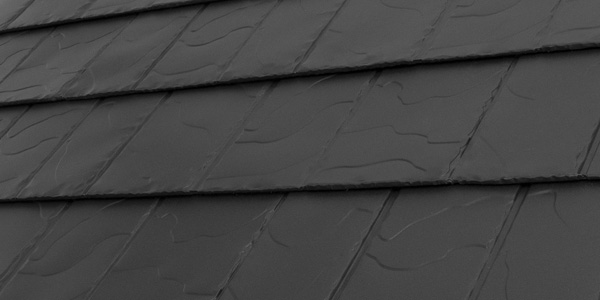

North Ridge Slate Product Tnslt P004 Assembly Side Angle

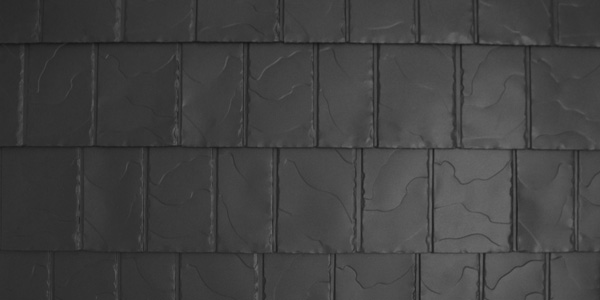

North Ridge Slate Product Tnslt P005 Assembly Overhead

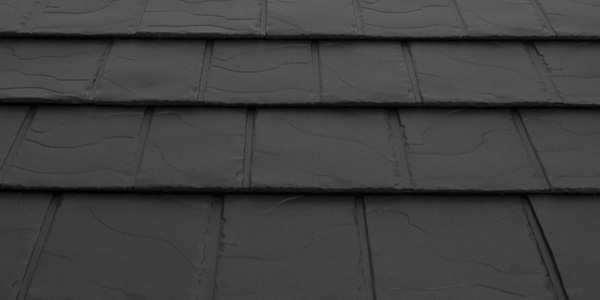

North Ridge Slate Product Tnslt P006 Assembly Front Angle

Design & Size

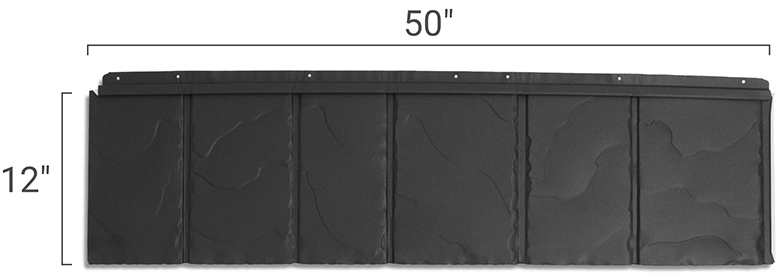

We provide North Ridge Slate in 1/2 SQ boxes (50 square feet). Each box contains 12 shingles. Each shingle is 13.5625” high by 50.75” wide and covers 12” high x 50” wide once installed.

north-ridge-slate-product-dimensions

Size

Actual: 13.5625” high by 50.75” wide
Coverage: 12” high by 50” wide

Gauge & Weight

28 Gauge - 1.00 lb / Sq Ft

Warranty & Finish

North Ridge Slate carries a non-prorated lifetime limited warranty, 40 year paint warranty, and 30 year fade/chalk warranty. Finish options include Kynar 500® / Hylar 5000® PVDF or SMP Siliconized-Modified-Polyester baked-on enamel paint over primer and Galvalume (zinc-aluminum) coated steel. This warranty is transferable to subsequent homeowners for up to 50 years after installation but becomes a pro-rated warranty.

Finish & Warranty

Lifetime Limited
50 Years Transferable

Reflectivity

6-29%
1 Color Hi-Reflective

Purpose & Use

A 4-way interlocking design and hidden fasteners make North Ridge Slate a great choice for roofs as low as 3:12. As with most painted metal shingles, True Nature is designed for installation on solid deck applications.

North Ridge Slate is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows North Ridge to easily handle the high winds in Florida.

Minimum Slope

3:12

Substrate

Solid Deck

Intent

Residential
Light Commercial

Colors

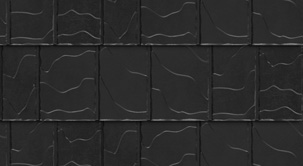

Ebony (Signature Matte)

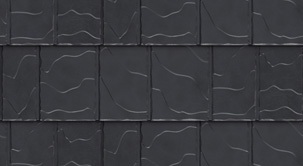

Shadow Deep Gray (Signature Matte)

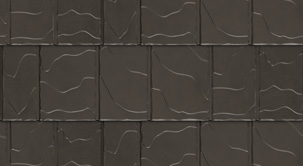

Burnished Slate (Signature Matte)

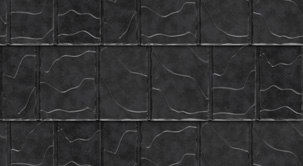

Midnight Storm (Expressence)

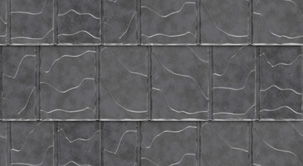

Mica Gray (Expressence)

Burnished Slate meets Hi-Reflective requirements, reflecting 29% of the sun’s rays, while the other colors still offer impressive reflectivity from 6-14%. The air gap created by the thickness of the slate also adds an insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 1897
215 MPH Wind Uplift
Testing: Florida Approvals
FL# 40929.1
Over 7/16" min. thick OSB or 15/32-inch, 32/16 span rated, 4-ply, CDX plywood
Hi-Reflective

Burnished Slate is Hi-Reflective certified, reflecting 29% of the sun’s rays.
