Tuff-Rib

Durable steel roofing at an amazing price point.

Request Pricing

Affordable And Permanent

Tuff-Rib is our most affordable metal roofing system. A generous 36″ coverage, category leading finishes, and high production volumes combine to ensure that everyone can afford a quality steel roof system.

Tuff Rib Product Tr P001 Panel Side Angle

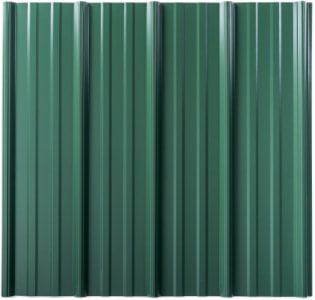

Tuff Rib Product Tr P002 Panel Overhead

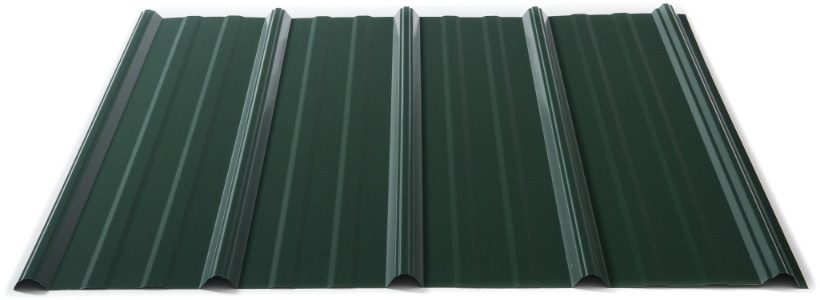

Tuff Rib Product Tr P003 Panel Front Angle

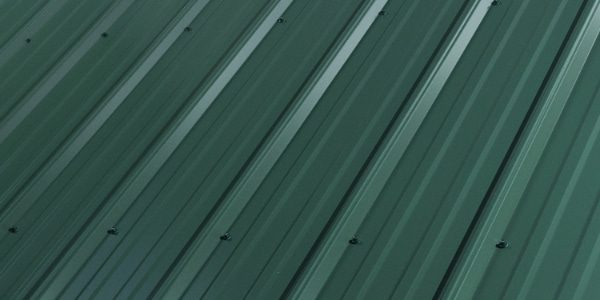

Tuff Rib Product Tr P004 Assembly Side Angle
Tuff Rib Product Tr P005 Assembly Overhead
Tuff Rib Product Tr P006 Assembly Front Angle

Design & Size

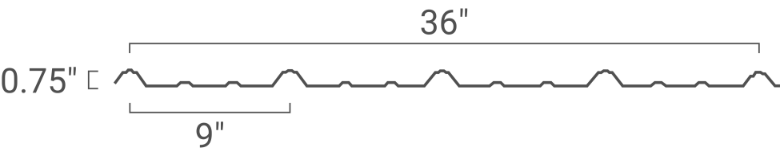

We provide Tuff-Rib custom cut to the inch per your specifications. Any length is available from 3′ up to 45′. Tuff-Rib’s design features five 3/4″ high ribs, spaced 9″ on center.

Size

36" Width (Coverage)
Cut to Inch From 3'–45'

Gauge & Weight

29 Gauge - 0.70 lb / Sq Ft
26 Gauge - 0.85 Lb / Sq Ft

Warranty & Finish

Painted Tuff-Rib carries a 40 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 25 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 40 Years
Galvalume: 25 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

An integrated anti-siphon groove on panel laps allows Tuff-Rib to be installed on roofs as low as 2.5:12. Strong 3/4″ trapezoidal ribs enable installation over solid deck and open frame applications.

Tuff-Rib is at home on residential applications but functions well as a light commercial panel as well.

A high tensile steel core allows Tuff-Rib to easily handle the high winds throughout Florida and even Miami-Dade Hurricane Zones.

Minimum Slope

2.5:12

Substrate

Solid Deck
Open Frame

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors
Arctic White
White
Ivory
Light Stone
Clay
Sahara Tan
Light Brown
Cocoa Brown
Pearl Gray
Charcoal Gray
Burnished Slate
Black
Marine Green
Patriot Red
Barn Red
Burgundy
Evergreen
Royal Blue
Gallery Blue
Copper Metallic Premium
Galvalume (Non-Painted)

Painted Tuff-Rib® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 7271.6
Min 29 ga., roof, over nom. 1" x 4" furring and 15/32" thick plywood or 7/16" thick OSB
FL# 7271.7
Min 29 ga., roof, over 15/32" thick plywood
FL# 7271.8
Min 26 ga., roof, over 19/32" thick plywood
FL# 9555.2
Min 26 ga., roof, over steel supports
FL# 9555.3
Min 29 ga., roof, over steel supports
FL# 9555.4
Min 29 ga., roof, over wood supports
FL# 9555.5
Min 29 ga., roof, over nom. 1" x 4" wood supports
FL# 20484.5
Min 29 ga., roof, over 15/32" thick plywood or 7/16" thick OSB
FL# 20484.6
Min 29 ga., roof, over 15/32" thick plywood
FL# 9557.1
Min 29 ga., wall, over steel supports
FL# 9557.2
Min 29 ga., wall, over wood supports
Hi-Reflective

Painted Tuff-Rib finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
