KasselWood Shake

So realistic, you’ll expect a cedar fragrance.

Request Pricing

Strength for a Lifetime

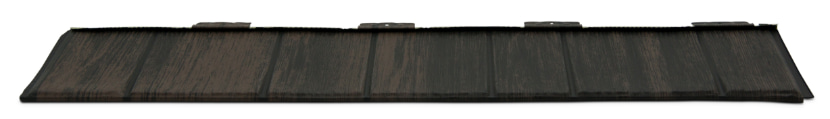

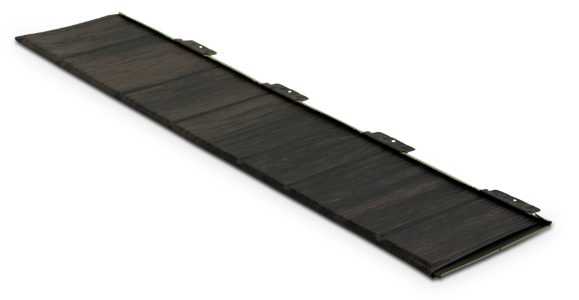

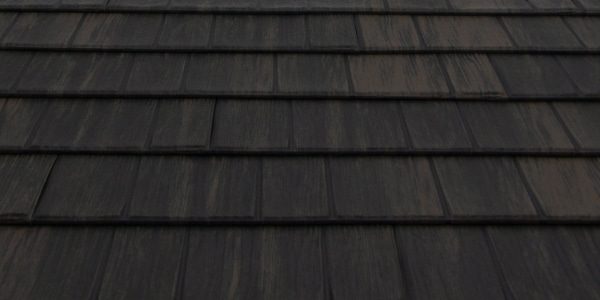

KasselWood Shake was invented for one purpose: to create the most realistic cedar shake product in a permanent steel roof material. Unique finish selections, multiple stamp patterns, and purpose-driven technological advances merge for an advanced metal shake roof system. KasselWood interlocks on all 4 sides for superior wind and storm protection.

Design & Size

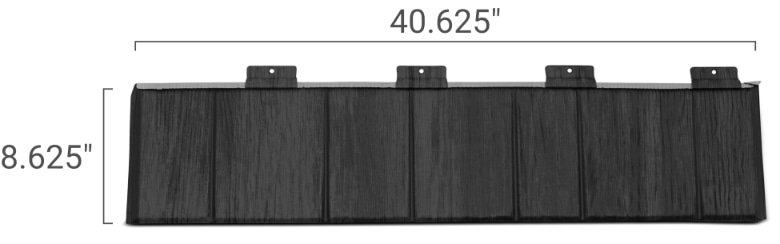

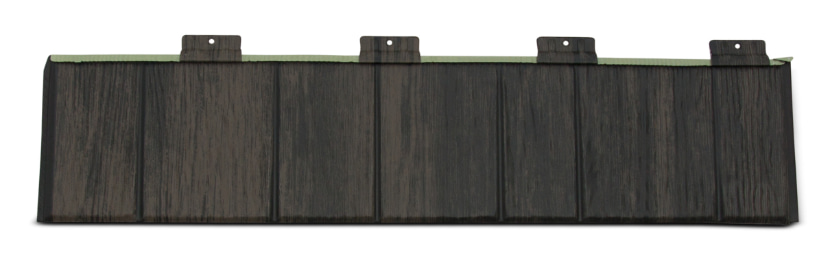

We provide KasselWood Shake in nominal 1/2 SQ boxes (48.7 square feet). Each box contains 20 shingles. Each shingle is 9.313″ high by 41.688″ wide and covers 8.625″ high x 40.625″ wide once installed.

Size

Actual: 9.313" high by 41.688" wide
Coverage: 8.625" high by 40.625" wide

Gauge & Weight

29 Gauge - 0.86 lb / Sq Ft

Warranty & Finish

KasselWood Shake carries a lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 40 years after installation.

Finish & Warranty

Lifetime Limited
40 Years Transferable

Reflectivity

24-54%
6 Energy Star® Rated Colors

Purpose & Use

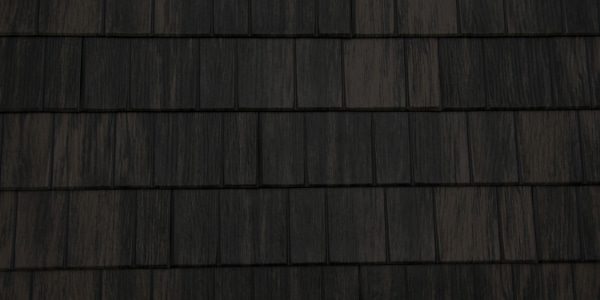

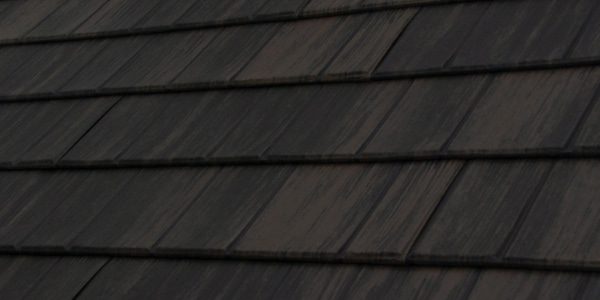

A 4-way interlocking design and hidden fasteners make KasselWood Shake a great choice for roofs as low as 3:12. As with most painted metal shingles, KasselWood is designed for installation on solid deck applications.

KasselWood Shake is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows KasselWood Shake to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

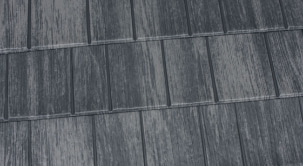

Aged Cedar

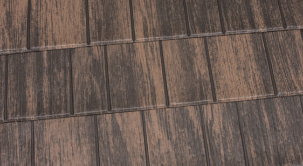

New Cedar

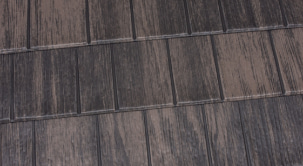

Weathered Cedar

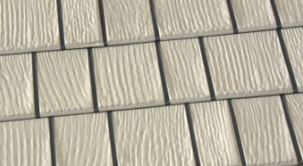

Stone

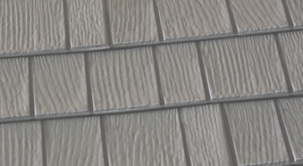

Gunmetal
Charcoal

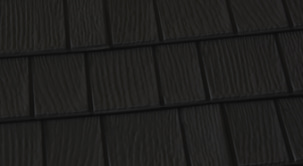

Black Onyx

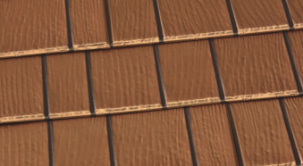

Copper Penny

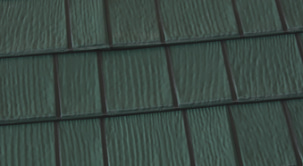

Evergreen

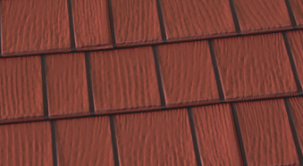

Mission Red

Six KasselWood Shake® finishes are Energy Star certified. Nine colors meet Energy Star requirements, reflecting 25-54% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 11858.1
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Energy Star®

Six KasselWood Shake® finishes are Energy Star certified. Nine colors meet Energy Star requirements, reflecting 25-54% of the sun’s rays.
