Timeless Italian Design

Decra Tile stone coated metal tile roofing offers the beauty of the Mediterranean with the energy efficient design of an over batten roof tile. Less expensive than Decra Villa, Decra Tile offers a refined look, with scalloped barrels and long-standing reputation for performance, longevity, and versatility. Decra Tile features a vented airspace that insulates to reduce utility costs and 26 gauge steel to handle hurricane winds.

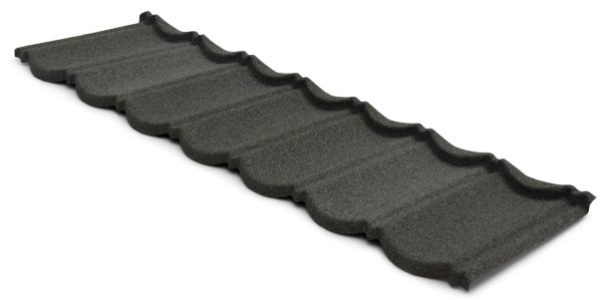

Decra Tile Product Dtile P001 Panel Side Angle

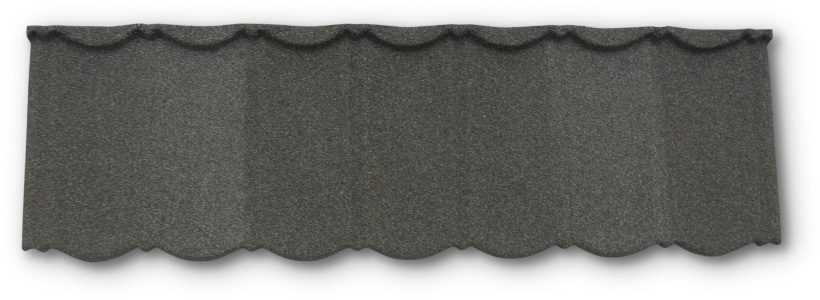

Decra Tile Product Dtile P002 Panel Overhead

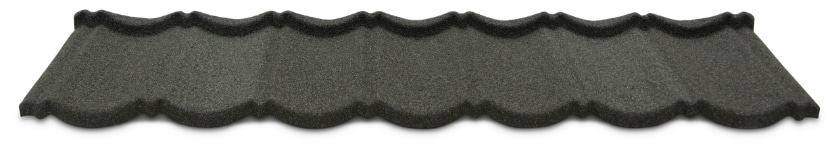

Decra Tile Product Dtile P003 Panel Front Angle

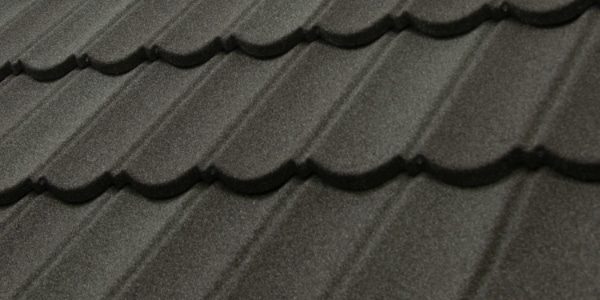

Decra Tile Product Dtile P004 Assembly Side Angle

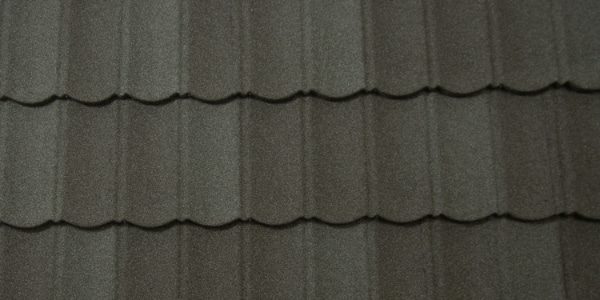

Decra Tile Product Dtile P005 Assembly Overhead
Decra Tile Product Dtile P006 Assembly Front Angle

Design & Size

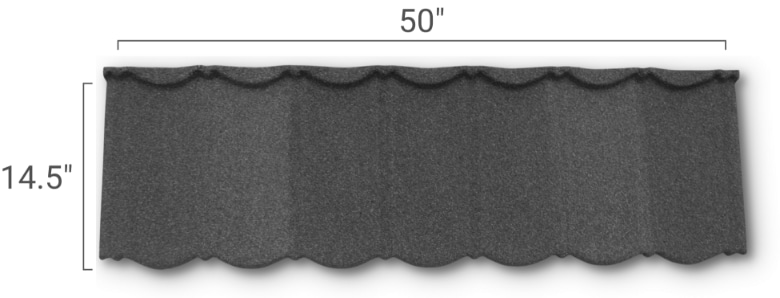

We provide Decra Tile by the roofing square (100 square feet). Each shingle is 16.5″ high by 52″ wide and covers 14.5″ high x 50″ wide once installed. To cover one square requires 20 Decra Tile panels.

Size

Actual: 16.5" high by 52" wide
Coverage: 14.5" high by 50" wide

Gauge & Weight

26 Gauge – 1.5 lb / Sq Ft

Warranty & Finish

Decra Tile carries a lifetime limited warranty – review the warranty sheet for details. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat, acrylic primer, and Aluminum-Zinc alloy coated steel.

Finish & Warranty

Lifetime Limited
50 Years Transferable

Reflectivity

CRRC Reflective Available by Special Order
Vented Airspace Provides Insulation Layer

Purpose & Use

Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Decra Tile a great choice for roofs as low as 3:12. Decra Tile is designed for installation on solid deck applications, over battens.

Decra Tile is most often chosen for residential applications but also functions at a high level for light commercial and church applications as well.

Decra Tile is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck – Over Battens

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

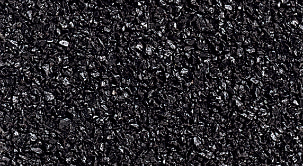

Charcoal
Chestnut

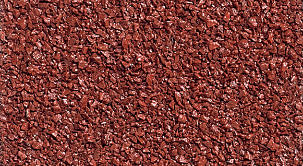

Garnet

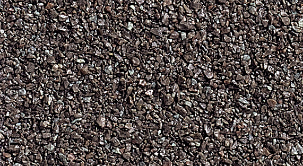

Granite Grey

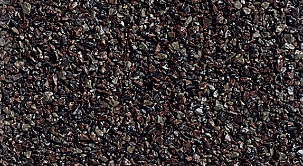

Shadowood

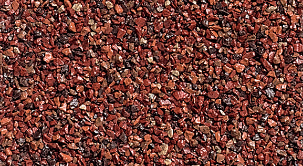

Terracotta
Tuscan Sun

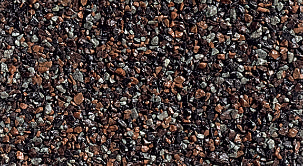

Weathered Timber

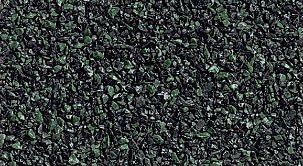

Woodland Green (Special Order)

None of the standard Decra Tile® finishes are Hi-Reflective certified, though the system does feature a vented air space for insulation value. Several special order CRRC reflective colors are available.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
NOA# 18-1015.06
See report for requirements
Testing: Florida Approvals
FL# 9759.1
See report for requirements
Hi-Reflective

None of the standard Decra Tile® finishes are Hi-Reflective certified, though the system does feature a vented air space for insulation value. Several special order CRRC reflective colors are available.
