7/8″ Corrugated

A commercial take on corrugated - 7/8" high ribs.

Request Pricing

Industrial/Commercial Corrugated Panel

7/8″ Corrugated is our tallest and strongest corrugated panel. Deep 7/8″ ribs are closely spaced, providing a rugged look and the strength for industrial and commercial applications. These higher ribs also allow installation on slopes as low as 1:12.

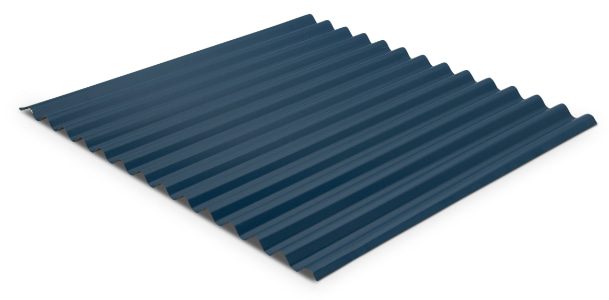

7 8 Corrugated Product C7 P001 Panel Side Angle

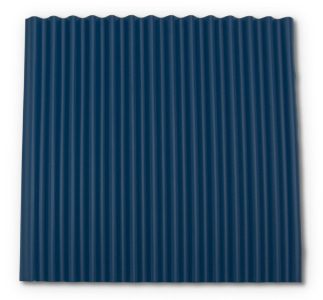

7 8 Corrugated Product C7 P002 Panel Overhead

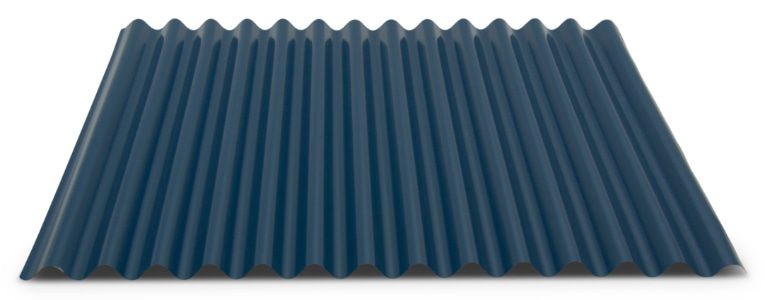

7 8 Corrugated Product C7 P003 Panel Front Angle

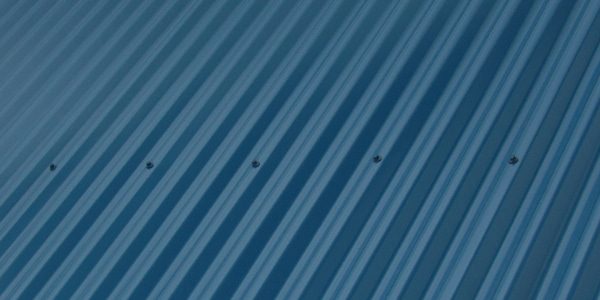

7 8 Corrugated Product C7 P004 Assembly Side Angle

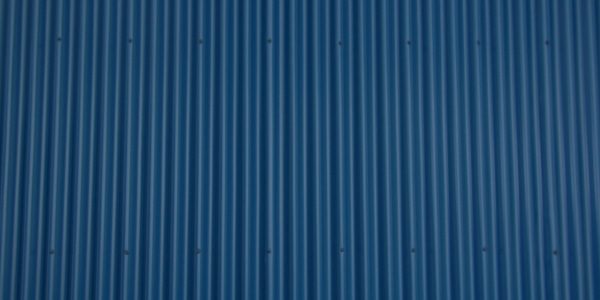

7 8 Corrugated Product C7 P005 Assembly Overhead

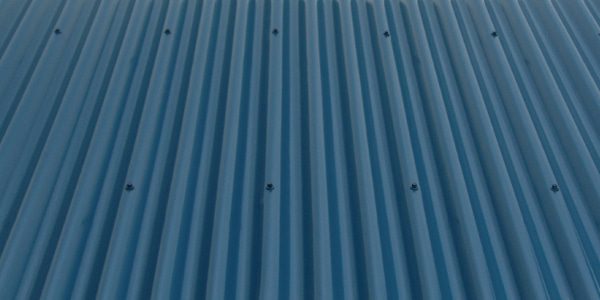

7 8 Corrugated Product C7 P006 Assembly Front Angle

Design & Size

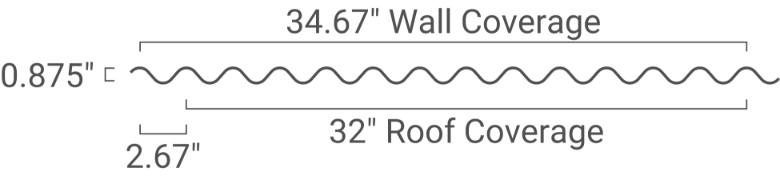

We provide 7/8″ Corrugated cut to the inch per specification. 7/8″ Corrugated design features 7/8″ high ribs, spaced 2.67″ on center. On roofs, ribs are lapped 2 ribs, while on walls, ribs are lapped 1 rib.

Size

Roof: 32", Walls: 34.67" (Varies By Location)
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 1.02 lb / Sq Ft
24 Gauge - 1.33 Lb / Sq Ft

Warranty & Finish

7/8″ Corrugated is available in both SMP painted, Kynar 500® painted, and non-painted Galvalume. Unpainted Galvalume is popular for industrial/commercial roofs, while the painted options are popular for roofs and walls of industrial, commercial and general purpose buildings.

Finish & Warranty

Painted: 40 Years
Galvalume: 25 Years

Reflectivity

25-70%
Hi-Reflective

Purpose & Use

7/8″ Corrugated has the strength to span open framing up to 5′ apart – allowing incredible strength and saving on material costs.

Common uses for 7/8″ Corrugated include horizontal and vertical oriented walls as well as use as a high-strength roof panel. Painted, Galvalume, and specialty finishes make 7/8″ Corrugated a look all your own.

A high tensile steel core allows 7/8″ Corrugated to handle roofs and walls in the high winds of Florida.

Minimum Slope

1:12

Substrate

Solid Deck
Open Frame

Florida Approvals

Florida Building Code

Intent

Commercial
Industrial

Colors
Polar White (26ga)
White (26ga)
Light Stone (26ga)
Mocha Tan (26ga)
Ash Grey (26ga)
Charcoal Gray (26ga)
Burnished Slate (26ga)
Black (26ga)
Brown (26ga)
Patriot Red (26ga)
Red #24 (26ga)
Burgundy (26ga)
Hawaiian Blue (26ga)
Ocean Blue (26ga)
Patina Green (26ga)
Forest Green (26ga)
Galvalume (Non-Painted)
Snowdrift White W81 (24ga)
Linen White 81 (24ga)
Sandstone W51 (24ga)
Parchment W74 (24ga)
Taupe 74 (24ga)
Khaki 88 (24ga)
Mansard Brown 133 (24ga)
Medium Bronze H4 (24ga)
Weathered Copper W150 (24ga)
Dark Bronze 50 (24ga)
Ash Grey 25 (24ga)
Old Town Grey W25 (24ga)
Old Zinc Grey W29 (24ga)
Slate Grey W38 (24ga)
Matte Black 106 (24ga)
Aged Copper 65 (24ga)
Patina Green W58 (24ga)
Hemlock Green M7 (24ga)
Classic Green 66 (24ga)
Felt Green W66 (24ga)
Patriot Red 73 (24ga)
Terra Cotta W72 (24ga)
Colonial Red W75 (24ga)
Brandywine P8 (24ga)
River Teal 59 (24ga)
Metallic Silver K7 (24ga Premium)
Champagne Metallic 168 (24ga Premium)
Mistique Plus W31 (24ga Premium)
Copper Penny W92 (24ga Premium)
Antique Patina M1 (24ga Premium)
Tahoe Blue W71 (24ga)
Ocean Blue 35 (24ga)
Regal Blue W35 (24ga)
Rustic Steel W45 (SP)

Painted 7/8″ Corrugated® finishes are Hi-Reflective, reflecting 25-70% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 10999.1
Min 24ga., roof, over steel purlins
FL# 9482.1
Min 24ga., wall, over steel purlins
Hi-Reflective

Painted 7/8″ Corrugated finishes are Hi-Reflective, reflecting 25-70% of the sun’s rays.
