KasselWood Slate

A roof to conquer the wild.

Request Pricing

Subtle or Bold

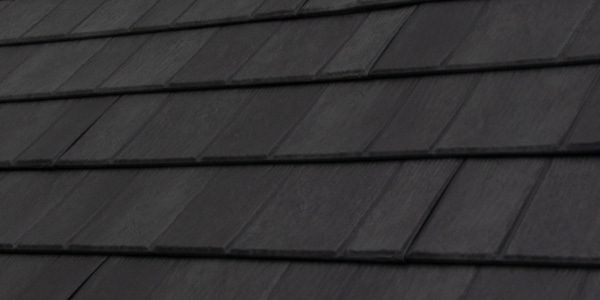

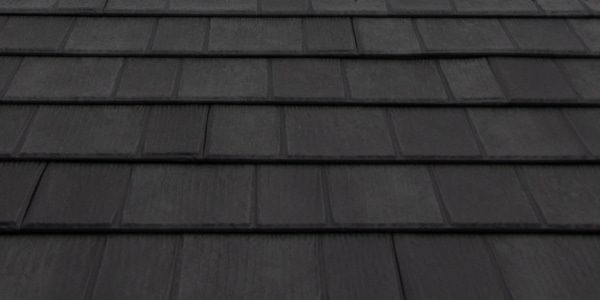

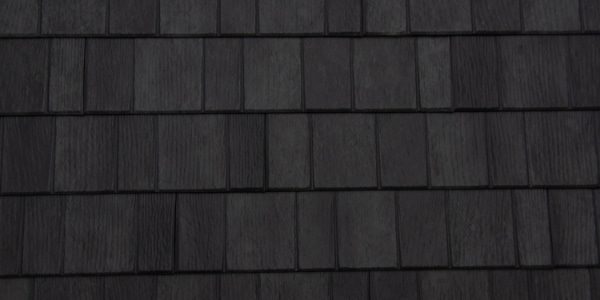

KasselWood Slate offers a slate roof appearance in finishes ranging from classic Slate Rock Gray to dashing Barkdust. Unique finish selections, multiple stamp patterns, and purpose-driven technological advances merge for an advanced metal slate roof system. KasselWood interlocks on all 4 sides for superior wind and storm protection.

Design & Size

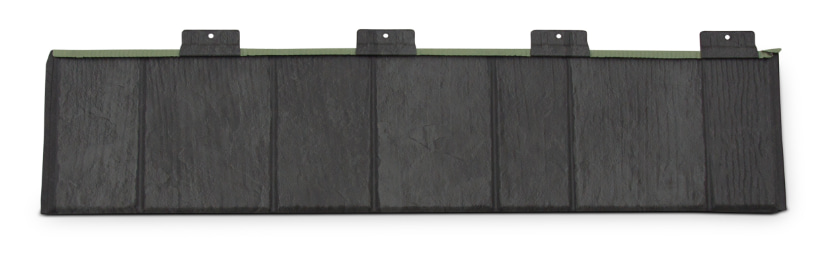

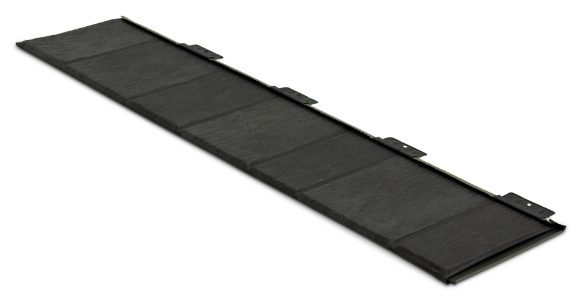

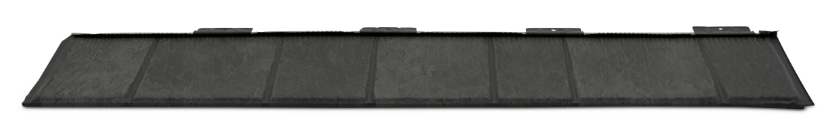

We provide KasselWood Slate in nominal 1/2 SQ boxes (48.7 square feet). Each box contains 20 shingles. Each shingle is 9.313″ high by 41.688″ wide and covers 8.625″ high x 40.625″ wide once installed.

Size

Actual: 9.313" high by 41.688" wide

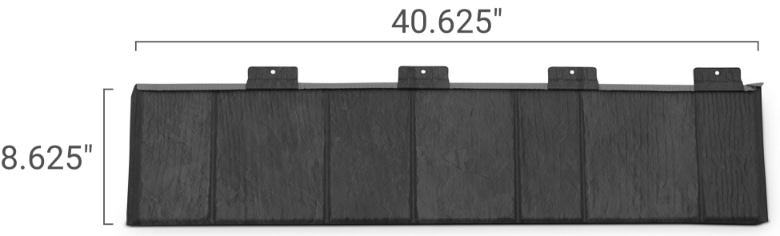

Coverage: 8.625" high by 40.625" wide

Gauge & Weight

29 Gauge - 0.86 lb / Sq Ft

Warranty & Finish

KasselWood Slate carries a lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 40 years after installation.

Finish & Warranty

Lifetime Limited
40 Years Transferable

Reflectivity

26-32%
1 Energy Star® Rated Color

Purpose & Use

A 4-way interlocking design and hidden fasteners make KasselWood Slate a great choice for roofs as low as 3:12. As with most painted metal shingles, KasselWood is designed for installation on solid deck applications.

KasselWood Slate is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows KasselWood Slate to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

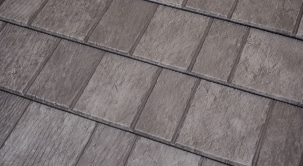

Slate Rock Gray

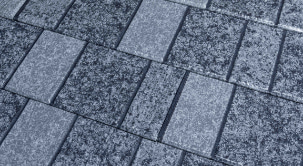

Cinder Gray

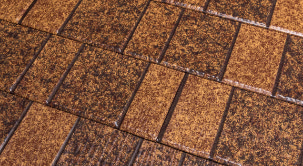

Barkdust

One KasselWood Slate® finish is Energy Star certified. All three colors meet Energy Star requirements, reflecting 26-32% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 11858.1
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Energy Star®

One KasselWood Slate® finish is Energy Star certified. All three colors meet Energy Star requirements, reflecting 26-32% of the sun’s rays.
