5V-Crimp

Vintage styling with a modern touch.

Request Pricing

Tradition and Style

For over five decades, 5V-Crimp has graced barns and sheds across America in simple non-painted zinc and zinc-alum finishes. Only in the last few years 5V-Crimp has been re-realized in baked on finishes as a lower cost alternative to standing seam systems. With simple lines and traditional “V” ribs, 5V-Crimp is popular in coastal regions and the Southeast.

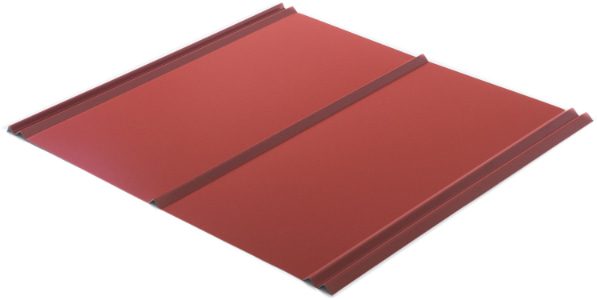

5v Crimp Product 5v P001 Panel Side Angle

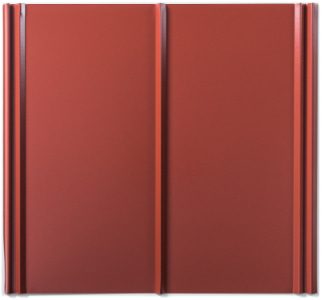

5v Crimp Product 5v P002 Panel Overhead

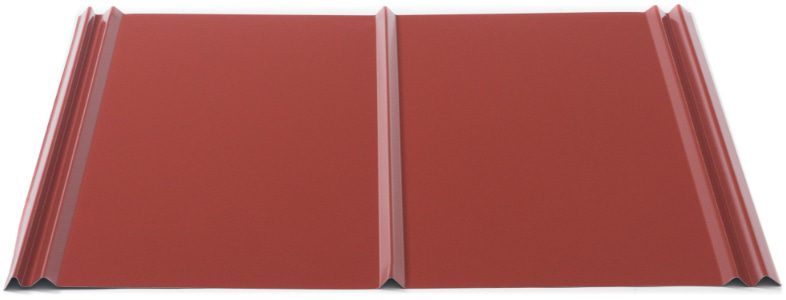

5v Crimp Product 5v P003 Panel Front Angle

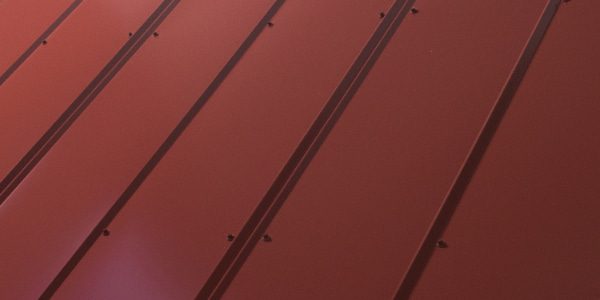

5v Crimp Product 5v P004 Assembly Side Angle

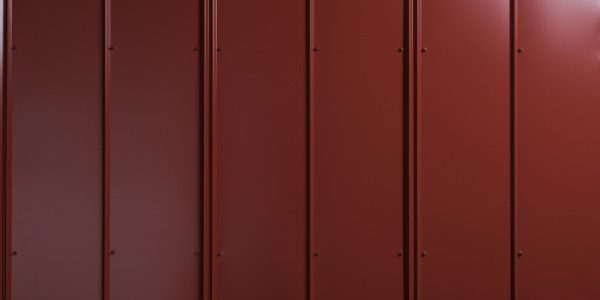

5v Crimp Product 5v P005 Assembly Overhead

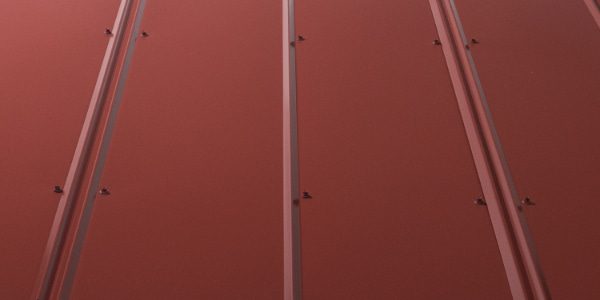

5v Crimp Product 5v P006 Assembly Front Angle

Design & Size

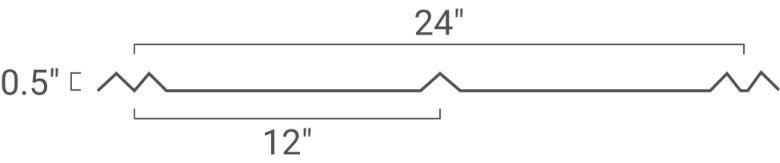

No need to lap multiple panels – 5V-Crimp is cut to the inch per your specifications. Any length is available from 3′ up to 45′ – though for handling 30′ maximum is recommended. 5V-Crimp’s design features five 1/2″ high ribs, two on each side and one in the middle.

Size

24" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

29 Gauge - 0.62 lb / Sq Ft
26 Gauge - 0.78 Lb / Sq Ft
24 Gauge - 1.02 Lb / Sq Ft

Warranty & Finish

Painted 5V-Crimp carries a 40 year paint warranty and 30 year fade/chalk warranty and has primer and Galvalume under the paint. Unpainted Galvalume carries a 25 year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat. Some plants also provide unpainted galvanized which carries no warranty and is a zinc coating. Oil Canning (waviness on flat pan) is a natural occurrence in flat pan metal panels and is not a cause for panel rejection.

Finish & Warranty

Painted: 40 Years
Galvalume: 25 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

5V-Crimp is primarily installed on homes in the South and Southeast, combining vintage formed “V” crimp ribs with the strength and versatility of steel.

5V-Crimp is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Agricultural

Colors
Arctic White (26ga)
Sahara Tan (26ga)
Burnished Slate (26ga)
Patriot Red (26ga)
Marine Green (26ga)
Green (26ga, 29ga)
Gallery Blue (26ga)
White (29ga)
Barn Red (29ga)

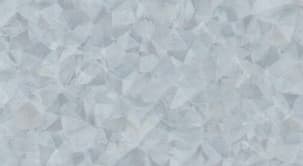

Galvalume (Non-Painted)

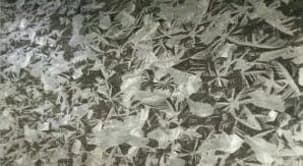

Galvanized (Non-Painted, Availability Varies)
Light Stone (Availability Varies)
Brown (Availability Varies)
Burgundy (Availability Varies)
Hawaiian Blue (Availability Varies)
Charcoal (Availability Varies)
Ash Grey (Availability Varies)
Black (Availability Varies)

Painted 5V-Crimp® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 7271.2
Min 26 ga., roof, over 15/32" thick plywood
FL# 7271.3
Min 26 ga., roof, over 19/32" thick plywood
FL# 7271.4
Min 29 ga., roof, over 15/32" thick plywood or 7/16" thick
FL# 7271.5
Min 26 ga., roof, over 15/32" or 19/32" thick plywood
FL# 9555.1
Min 26 ga., roof, over wood supports
FL# 20484.1
Min 26 ga., roof, over 15/32" thick plywood
Hi-Reflective

All 5V-Crimp finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
