Sentry Shingle

A simple low-profile metal shingle.

Request Pricing

Protect What Matters

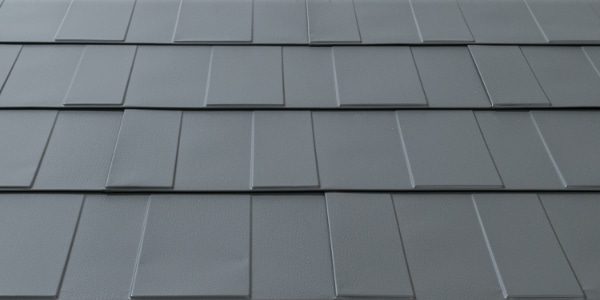

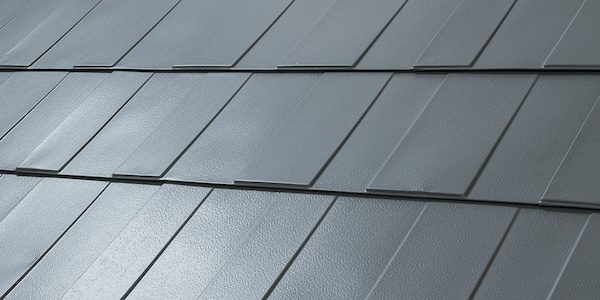

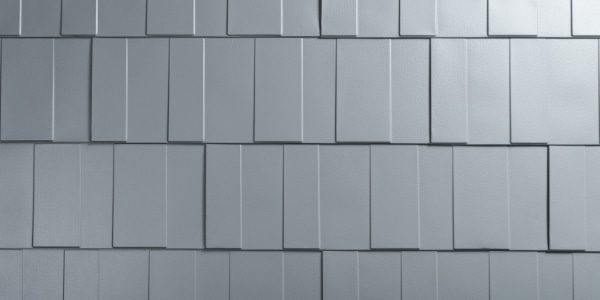

Sentry Shingle combines high tech metal shingle technology with a minimalistic curved stamp pattern. Sentry interlocks on all 4 sides for superior wind and storm protection.

Design & Size

We provide Sentry Shingle in 1/2 SQ boxes (50 square feet). Each box contains 15 shingles. Each shingle is 14.2″ high by 39.5″ wide and covers 12.25″ high x 39″ wide once installed.

Size

Actual: 14.2" high by 39.5" wide

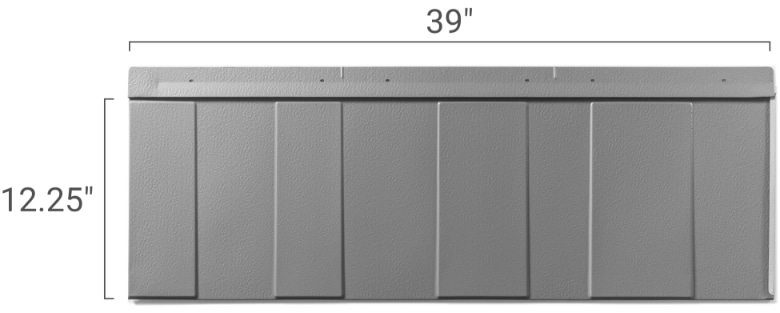

Coverage: 12.25" high by 39" wide

Gauge & Weight

29 Gauge - 0.76 lb / Sq Ft

Warranty & Finish

Sentry Shingle carries a lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 40 years after installation.

Finish & Warranty

Lifetime Limited
40 Years Transferable

Reflectivity

25-54%
6 Energy Star® Rated Colors

Purpose & Use

A 4-way interlocking design and hidden fasteners make Sentry Shingle a great choice for roofs as low as 3:12. As with most painted metal shingles, Sentry is designed for installation on solid deck applications.

Sentry Shingle is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows Sentry Shingle to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

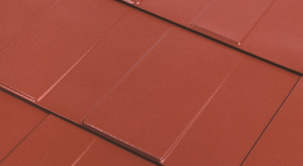

Mission Red

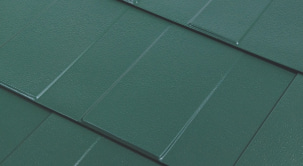

Evergreen

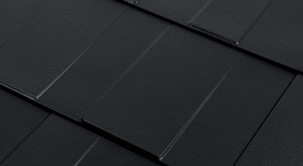

Black

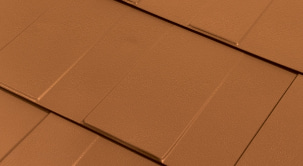

Copper Penny

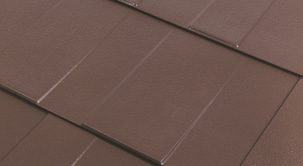

Timber

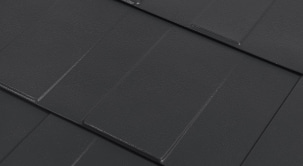

Charcoal
Gunmetal

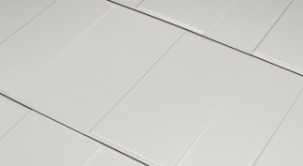

Stone

Six Sentry Shingle® finishes are Energy Star certified. All eight meet Energy Star requirements, reflecting 25-54% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 17418.1
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Energy Star®

Six Sentry Shingle® finishes are Energy Star certified. All eight meet Energy Star requirements, reflecting 25-54% of the sun’s rays.

Customer Reviews
Sentry Shingle in Charcoal

Shane L. Kennett, Missouri

Allison was wonderful to work with, she couldn’t have been more kind or helpful! I’m really liking the roof and getting lots of compliments.It hasn’t been too difficult with the instructions online and the Kassel and Irons YouTube channel. I still lack the back of the garage and then the ridge caps on the garage side. Then I’ll be done. Thanks for everything!

View Product
Sentry Shingle in Copper Penny

Scott S. Phillipsburg, Kansas

Allison, the roofing project went well as we finished same in late June, 2018. The roof of the house, the attached backyard garage and the separate mancave garage look fantastic. I will see if we can get some pictures for you. Additionally, we repainted the siding on the house. The mancave painting is not finished as the young sons had to get back to college. Here are some pictures taken during the installation of the copper color steel shingles.

View Product
Sentry Shingle in Evergreen

Paul C. Francestown, New Hampshire

I like your product very much. Particularly that the shingles have a flange with holes punched in them for the screws. I have had several people come by, not to mention neighbors and compliment on how nice the roof looks.

View Product
