Cottage Shingle

A permanent take on a classic look.

Request Pricing

Cozy as a Fireplace

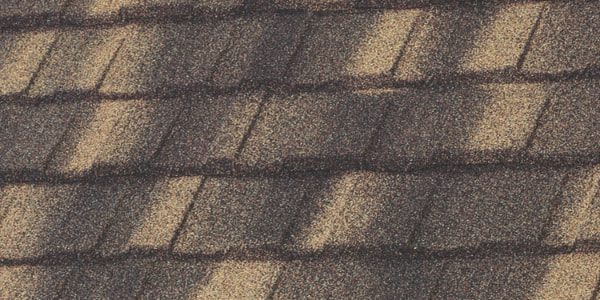

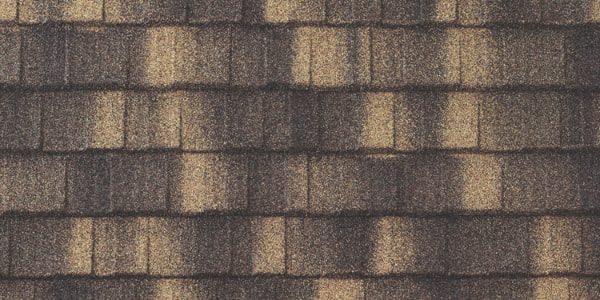

Cottage Shingle capture the rustic look of cottage style wood shingles, each curve and angle truer than the next. Exceptional stone granule blends combine with a 26 gauge Galvalume steel core to deliver hurricane resistance and long term protection for your roof.

Design & Size

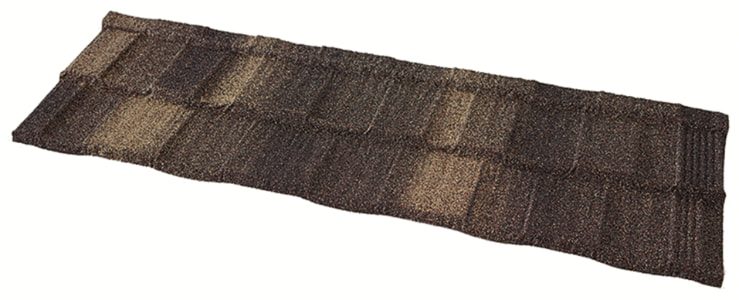

We provide Cottage Shingle by the roofing square (100 square feet). Each shingle is 14.125″ high by 52.375″ wide and covers 12.25″ high x 49.5″ wide once installed. To cover one square requires 22 Cottage panels.

Size

Actual: 16" high by 51" wide

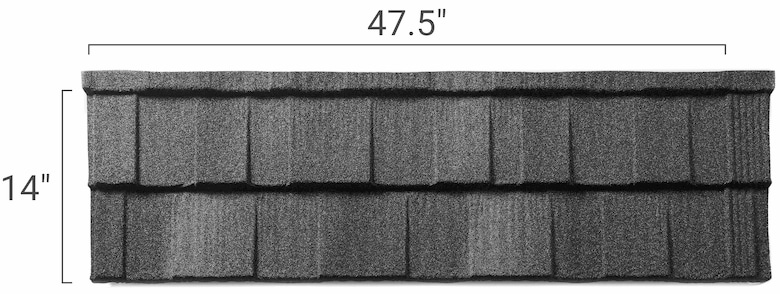

Coverage: 14" high by 47.5" wide

Gauge & Weight

26 Gauge – 1.5 lb / Sq Ft

Warranty & Finish

Cottage Shingle carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.

Finish & Warranty

50 Years Limited
Fully Transferable

Reflectivity

4-11%
Vented Airspace Provides Insulation Layer

Purpose & Use

Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Cottage Shingle a great choice for roofs as low as 3:12. Cottage Shingle is designed for installation on solid deck applications.

You’ll find Cottage Shingle most often on residential applications, but it also functions well for light commercial applications as well.

Cottage is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors
Timberwood-HD

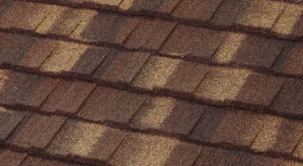

Barclay-HD

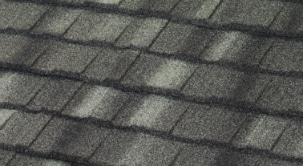

Ironwood-HD

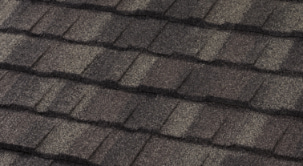

Charcoal-HD

Tuff-Rib® finishes are Energy Star rated, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 27408.1
See report for requirements
Energy Star®

Cottage Shingle® finishes are not Energy Star certified, though the system does feature a vented air space for insulation value.
