Timeless Beauty

ArrowLine Shake provides the charm and warmth of wood in a strong, maintenance free steel material. ArrowLine interlocks on all 4 sides for superior wind and storm protection. Don’t settle for a 10 to 15-year flammable wood roof – choose a lifetime of beauty.

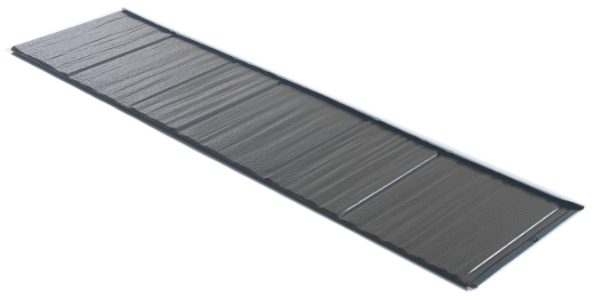

Arrowline Shake Product Alshk P001 Panel Side Angle

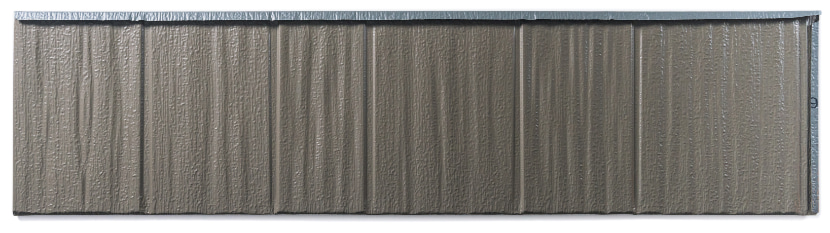

Arrowline Shake Product Alshk P002 Panel Overhead

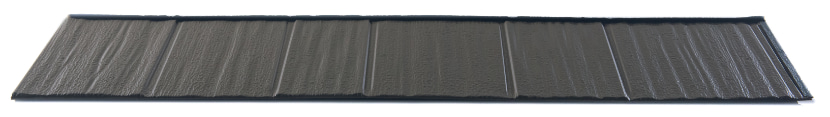

Arrowline Shake Product Alshk P003 Panel Front Angle

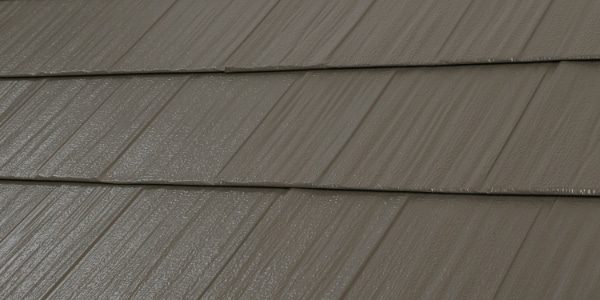

Arrowline Shake Product Alshk P004 Assembly Side Angle

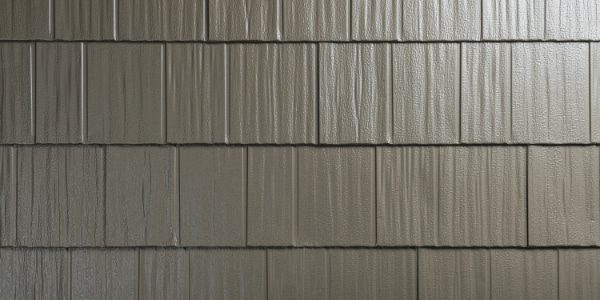

Arrowline Shake Product Alshk P005 Assembly Overhead

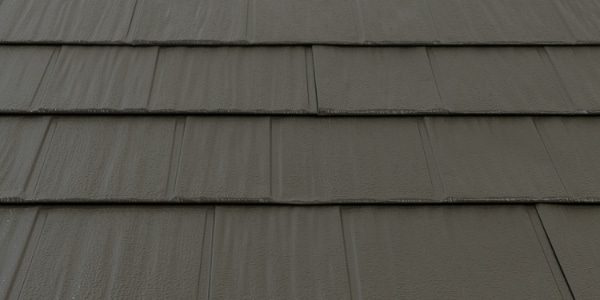

Arrowline Shake Product Alshk P006 Assembly Front Angle

Design & Size

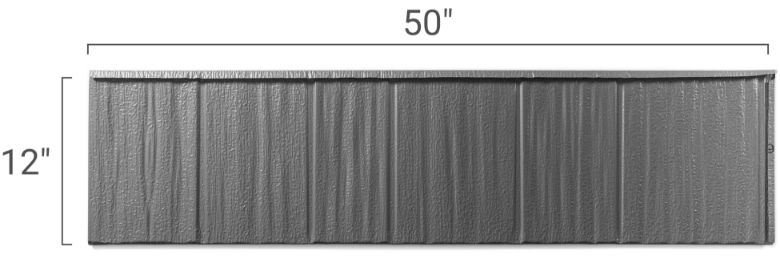

We provide ArrowLine Shake in 1/2 SQ boxes (50 square feet). Each box contains 12 shingles. Each shingle is 12.8″ high by 50.7″ wide and covers 12″ high x 50″ wide once installed.

Size

Actual: 12.8" high by 50.7" wide
Coverage: 12" high by 50" wide

Gauge & Weight

30 Gauge - 0.76 lb / Sq Ft
28 Gauge - 0.90 lb / Sq Ft

Warranty & Finish

ArrowLine Shake carries a non-prorated lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 50 years after installation but becomes a pro-rated warranty.

Finish & Warranty

Lifetime Limited
50 Years Transferable

Reflectivity

25-35%
Hi-Reflective

Purpose & Use

A 4-way interlocking design and hidden fasteners make ArrowLine Shake a great choice for roofs as low as 4:12. As with most painted metal shingles, ArrowLine is designed for installation on solid deck applications.

ArrowLine Shake is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

ArrowLine Shake in 28 gauge thickness meets Florida Building Code requirements. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

4:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code (28 gauge)

Intent

Residential
Light Commercial

Colors

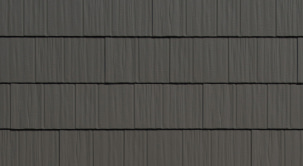

Charcoal Gray (30ga, 28ga)

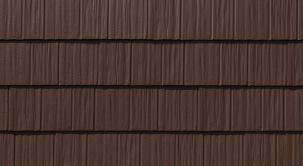

Royal Brown (30ga, 28ga)

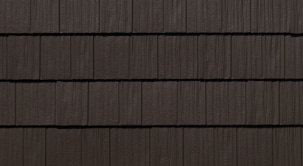

Statuary Bronze (30ga, 28ga)

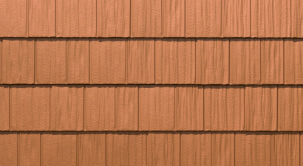

Copper (30ga, 28ga)

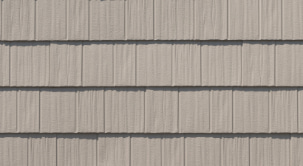

Sandtone (28ga)

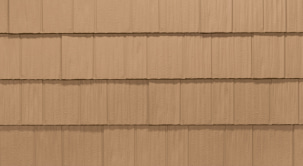

Cedar (28ga)

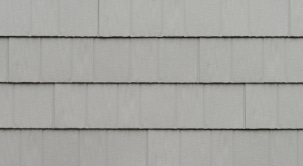

Pewter (28ga)

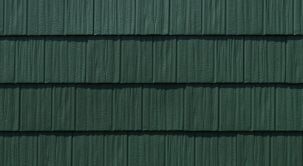

Hartford Green (28ga)

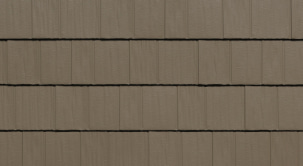

T-Tone (28ga)

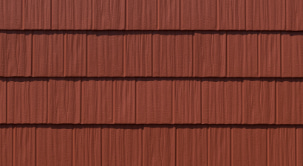

Classic Red (28ga)

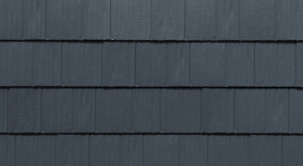

Classic Blue (28ga)

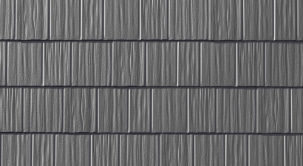

Zn90 (28ga)

ArrowLine Shake® finishes are Hi-Reflective certified, reflecting 25-35% of the sun’s rays.
Availability in 28-30 gauge varies by color.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 4077.1
See report for requirements
Hi-Reflective

ArrowLine Shake® finishes are Hi-Reflective certified, reflecting 25-35% of the sun’s rays.
