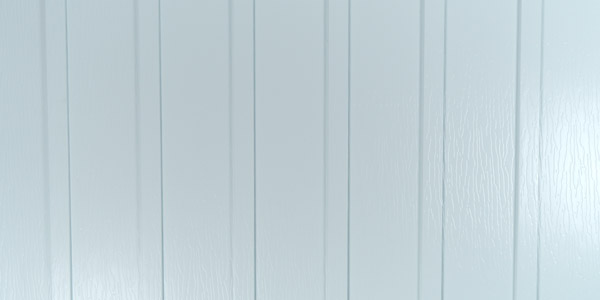

Craftsman Steel Board & Batten
Discover the beauty of Craftsman with custom crafted steel siding
Crisp Lines and Simple Elegance

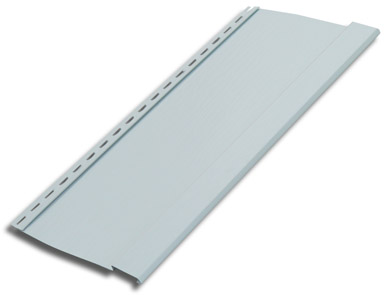

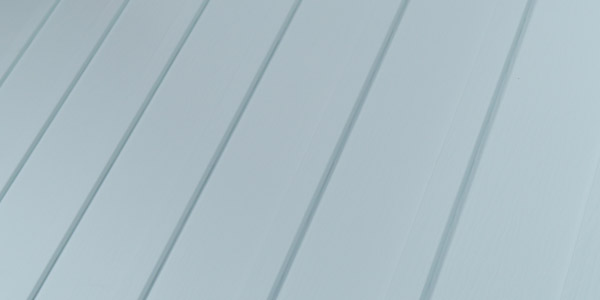

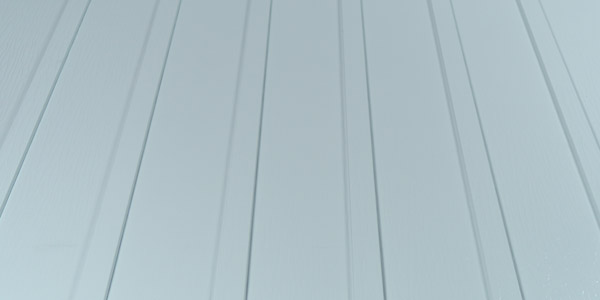

Craftsman Siding is our signature steel siding, with Craftsman Board & Batten as our most sold residential siding line. Craftsman installs fastest of all siding, with cut to the half-inch lengths, quick-locking hidden fastened side flange, and a gorgeous woodgrain finish. From smooth and HD textured finishes, Craftsman is built to add permanent beauty to your home.
Design & Size

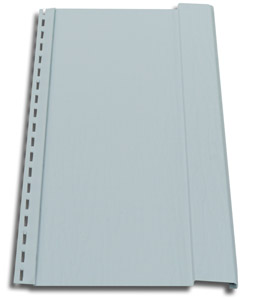

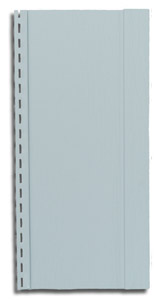

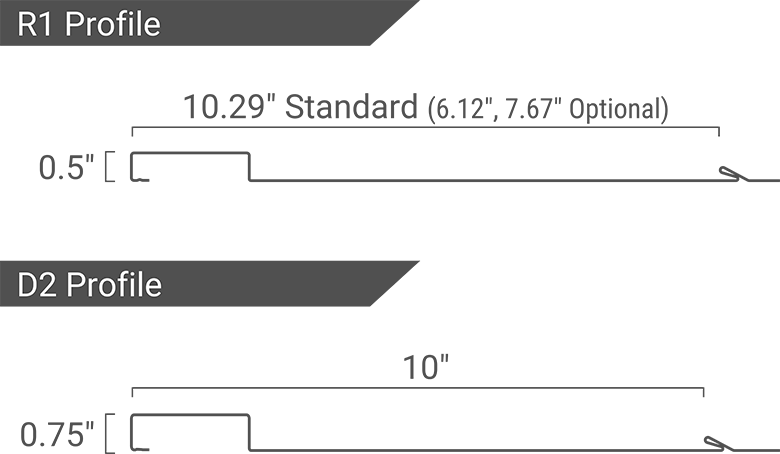

We provide Craftsman Steel Board & Batten Siding custom cut to the half inch per specifications. Any length is available from 2′ up to 35′. These custom crafted panels come in 10.29″, 7.67″, and 6.12″ sizes. Thickness options include 29 and 26 gauge.
Size
10.29", 6.12", 7.67" Width (Coverage)
Cut to Half-inch from 2'-45'
Gauge & Weight
29 Gauge - 0.80 lb / Sq Ft
26 Gauge - 1.00 Lb / Sq Ft
Warranty & Finish
Painted Craftsman Steel Board & Batten Siding carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.
Finish & Warranty
Painted: 50 Years
Galvalume: 45 Years
Reflectivity
25-67%
Hi-Reflective
Purpose & Use
Craftsman Board & Batten is most commonly chosen for residential and light commercial use. A steel substrate and hidden flange fastening system lock out wind and water.
Craftsman Board & Batten is designed to be installed over solid decking, but can sometimes be installed over wood battens when going over uneven surfaces.
Minimum Slope
N/A
Substrate
Solid Deck
Intent
Residential
Light Commercial

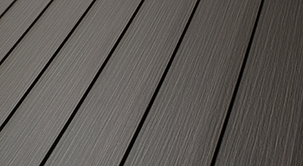

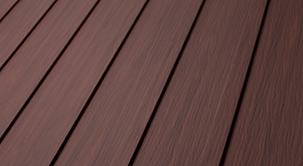

Colors
Pure White
Ivory
Stone
Clay
Sierra Tan
Brown
Light Gray
Charcoal
Bronze
Black
Bright Red
Barn Red
Burgundy
Hawaiian Blue
Gallery Blue
Forest Green
HD Black (Premium)
HD Forest Green (Premium)
HD Charcoal (Premium)

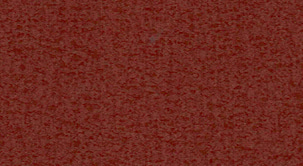

HD Barn Red (Premium)
HD Bronze (Premium
Copper Penny (Metallic Premium)

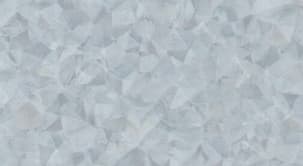

Galvalume (Non-Painted)Painted Craftsman Board & Batten® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
