Sapphire European Tile

Refined curves, brute strength.

Request Pricing

Begin with Durability

Sapphire European Tile provides the elegant beauty of European tile roofing in a custom cut-to-length steel material. Sapphire is stamped in 3′ to 19′ 6″ sheets for ease of installation – a tough 26 gauge steel and baked on Hylar/Kynar paint finish ensure strength and longevity.

Design & Size

We provide Sapphire custom formed to the inch from 3′ to 19′ 6″ long. Sapphire’s design features 1.25″ high wave barrels, spaced 7.25″ on center. Barrels have a 1/2″ step up every 13.75″, for a total height of 1.75″. Sapphire comes in 26 gauge standard.

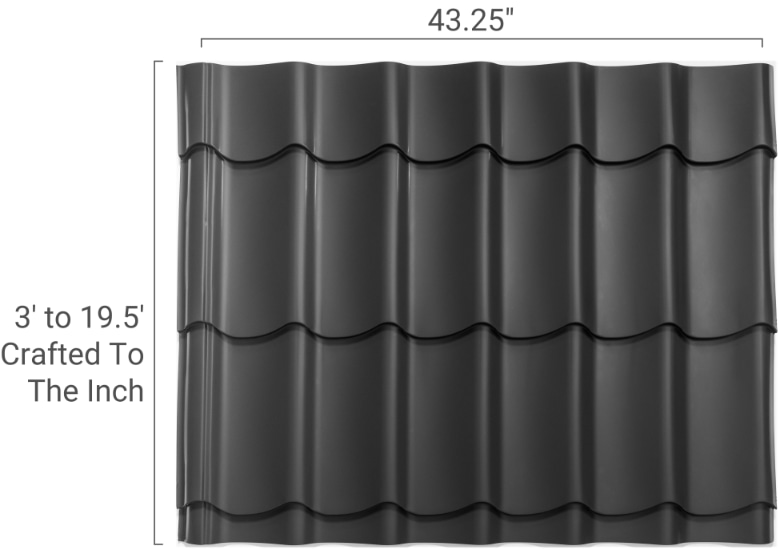

Size

43.25" Width (Coverage)
Cut to Inch from 3' to 19' 6"

Gauge & Weight

26 Gauge - 0.96 lb / Sq Ft

Warranty & Finish

Sapphire European Tile carries a 50 year limited warranty which covers manufacturing defects, 240 MPH wind, and hail. It also carries a 35 year paint, fade, and chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel.

Finish & Warranty

50 Years

Reflectivity

25-58%
Energy Star® Rated

Purpose & Use

Long cut-to-inch sheets and tight fitting overlaps make Sapphire European Tile a great choice for roofs as low as 3:12. Sapphire is designed for installation on solid deck applications – primarily direct to deck, but can also be installed over wood batten supports over solid decking.

Sapphire European Tile is most often chosen for residential and light commercial applications – any structure that requires the look of clay or concrete tile without the extreme weight.

Sapphire has not been tested in Florida at this time.

Minimum Slope

3:12

Substrate

Solid Deck

Intent

Residential
Light Commercial

Colors
Terra Cotta Matte (Stock, Std)
Bronze (Stock, Std)
Dark Brown Matte (Stock, Std)
Black Matte (Stock, Std)
Chocolate Brown (Stock, Std)
Graphite Matte (Stock, Std)
Forest Green Matte (Stock, Prem)
Cherry Red (Stock, Prem, Ltd Warr)
White (SP, Prem)
Beach Sand (SP, Prem)
Metallic Silver (SP, Prem)
Gray (SP, Prem)
Coral Red (SP, Prem, Ltd Warr)
Cobalt Blue (SP, Prem)
Burgundy (SP, Prem)
Coppertone (SP, Prem)

Sapphire® finishes are Energy Star rated, reflecting 25-58% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Energy Star®

Sapphire European Tile® finishes are Energy Star rated, reflecting 25-58% of the sun’s rays.
