How To Install Flex-O-Vent Ridge Vent

Installing Flex O Vent Ridge Vent

Flex-O-Vent ridge ventilation installs quickly and cost effectively. It is mostly used for or is the choice for through fastened panels. The Flex-O-Vent product can be used on lower profile standing systems with the use of vent clips.

Step 1

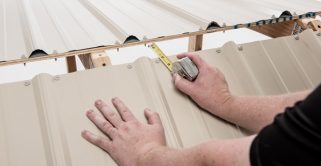

Make sure panel is free of dust and debris. If not pre-cut, cut 2” slot at ridge. Measure and mark where the ridge cap will sit on the panel.


Step 2

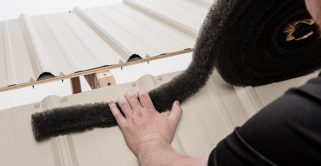

Start from the end of the ridge, rolling out Flex-O-Vent along the length of the ridge (both sides), making sure the vent sits “up-slope” from the edge of the ridge cap.

Vent material

Step 3

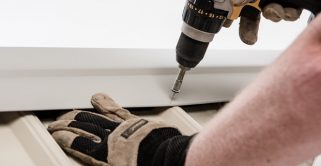

Apply ridge cap, compressing material between the ridge cap and major rib. Fasten at the major rib using a screw gun set to at least 2700 rpm.

Ridge cap
