Snap-Lock 150 Standing Seam

A lifetime mid-range standing seam.

Snap-Lock 150 Standing Seam
Request Pricing

Rock Solid Design

Snap-Lock 150 is a modern standing seam most chosen for residential applications. A clip lock design allows for unlimited expansion and contraction.

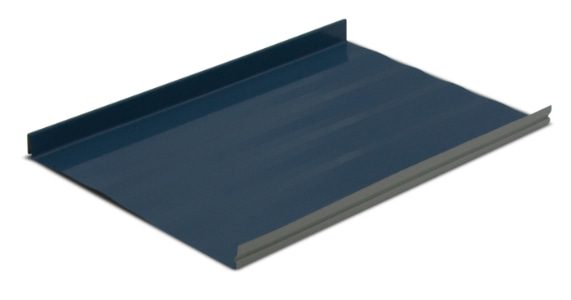

Snap Lock 150 Product Sl P001 Panel Side Angle

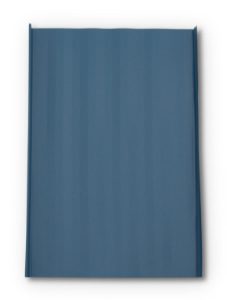

Snap Lock 150 Product Sl P002 Panel Overhead

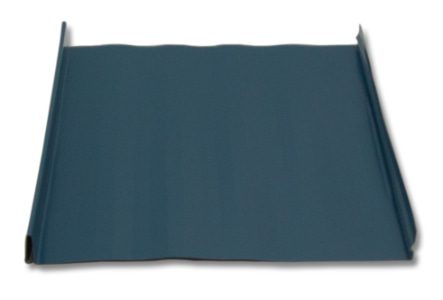

Snap Lock 150 Product Sl P003 Panel Front Angle
Snap Lock 150 Product Sl P004 Assembly Side Angle

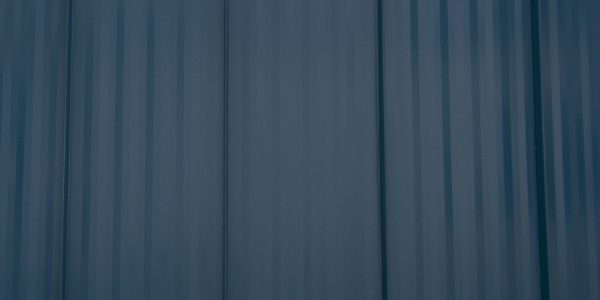

Snap Lock 150 Product Sl P005 Assembly Overhead

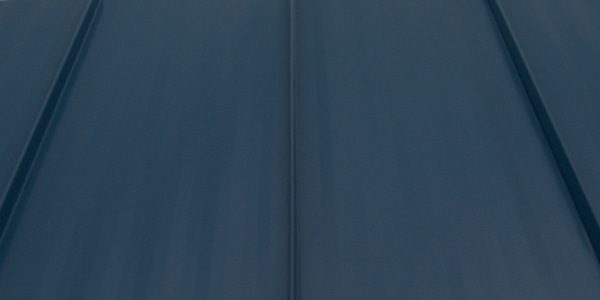

Snap Lock 150 Product Sl P006 Assembly Front Angle

Design & Size

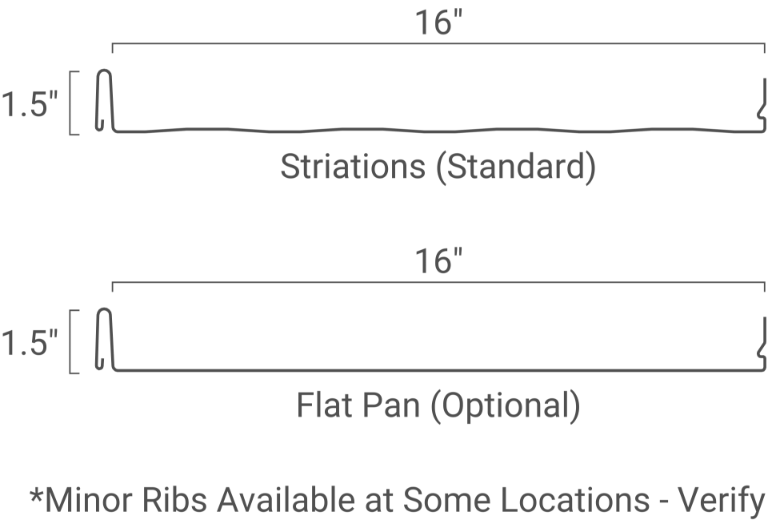

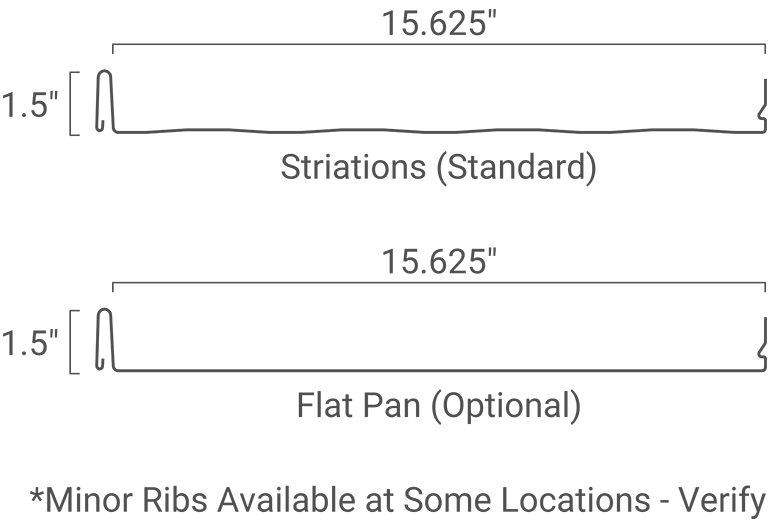

We provide Snap-Lock 150 custom cut to the inch per specifications. Any length is available from 3′ up to 45′. Snap-Lock 150’s design features 1.5″ high snap-lock style ribs, spaced 16″ on center. Thickness options include 26 and 24 gauge as standard.

Size

16" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 0.92 Lb / Sq Ft
24 Gauge - 1.19 Lb / Sq Ft

Warranty & Finish

Painted Snap-Lock 150 carries a 30-40 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 25 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 30-40 years
Galvalume: 25 years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Snap-Lock 150 is a thin-seam standing seam most chosen for high end residential and commercial projects.

Snap-Lock 150 is designed for installation over solid decking and designed for use on slopes as low as 3:12.

A floating design allows for longer panels and end-lapping as needed.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code (standard, HVHZ)

Intent

Residential
Commercial

Colors
Arctic White
Light Stone
Sahara Tan
Cocoa Brown
Pearl Gray
Charcoal Gray
Burnished Slate
Black
Marine Green
Patriot Red
Barn Red
Burgundy
Evergreen
Royal Blue
Gallery Blue
Copper Penny (Premium)
Galvalume (Non-Painted)

Painted Snap-Lock 150® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 9443.1(HVHZ and Non-HVHZ)
Min 24 ga., max 16” wide, over plywood
Hi-Reflective

Painted Snap-Lock 150 finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
