Long Life and Beauty

Granite Ridge is our simplest stone coated metal shingle with the appearance of a low profile fiberglass shingle. Hidden fasteners, 26 gauge steel and a hurricane proven design combine to create an easy-to-install straight forward roof system.

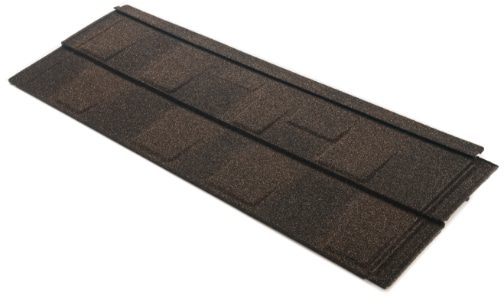

Granite Ridge Product Bshng P001 Panel Side Angle

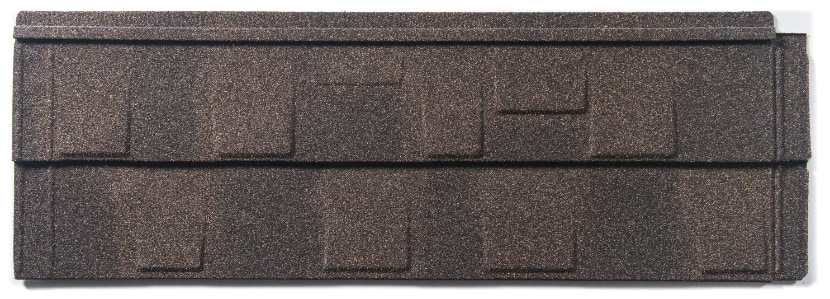

Granite Ridge Product Bshng P002 Panel Overhead

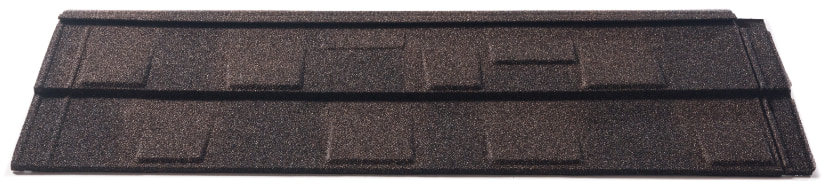

Granite Ridge Product Bshng P003 Panel Front Angle

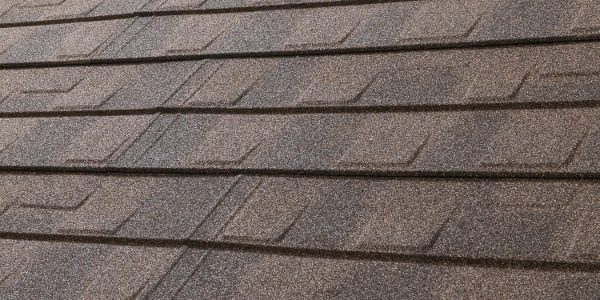

Granite Ridge Product Bshng P004 Assembly Side Angle

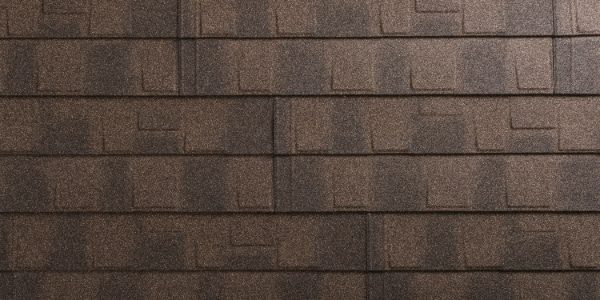

Granite Ridge Product Bshng P005 Assembly Overhead

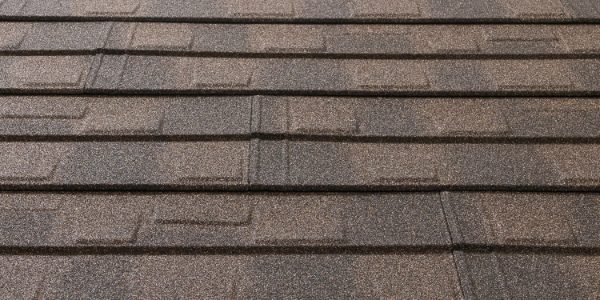

Granite Ridge Product Bshng P006 Assembly Front Angle

Design & Size

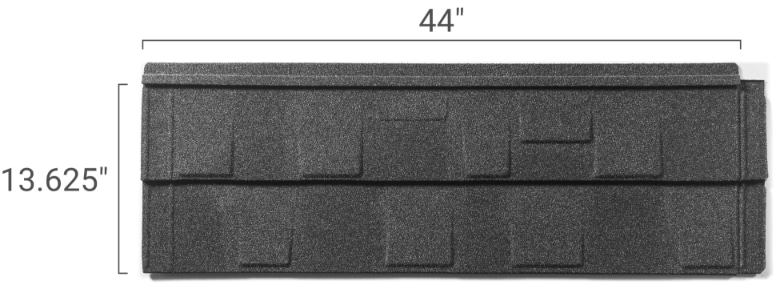

We provide Granite Ridge by the roofing square (100 square feet). Each shingle is 15.625″ high by 46″ wide and covers 13.625″ high x 44″ wide once installed. To cover one square requires 24 Granite Ridge panels.

Size

Actual: 15.625" high by 46" wide
Coverage: 13.625" high by 44" wide

Gauge & Weight

26 Gauge – 1.5 lb / Sq Ft

Warranty & Finish

Granite Ridge carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.

Finish & Warranty

50 Years Limited
Fully Transferable

Reflectivity

4-14%
Vented Airspace Provides Mild Insulation Layer

Purpose & Use

An interlocking design and hidden fasteners make Granite Ridge a great choice for roofs as low as 3:12. Granite Ridge is designed for installation on solid deck applications.

You’ll find Granite Ridge most often on residential applications, but it also functions well for light commercial applications as well.

Granite is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

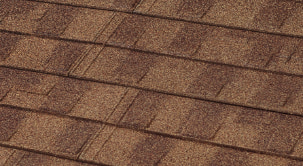

English Suede

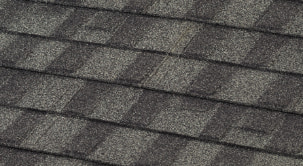

Ironwood

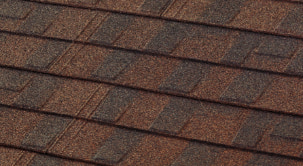

Barclay

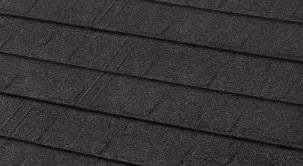

Charcoal

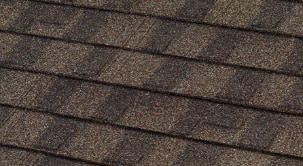

Timberwood

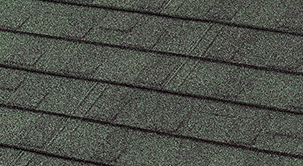

Sage Green (Special Order)

Granite Ridge® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 27408.1
See report for requirements
Hi-Reflective

Granite Ridge® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
