Matterhorn Tile

Inspired by clay, looks like clay.

Request Pricing

Perfectly Captures the Look


Matterhorn Tile, often referred to as Presidio Tile in the West, provides the classic elegance and enduring history of Italian Clay Tile. Great lengths were taken to recreate the allure of clay in a permanent steel tile roof material. Two sizes are available for speed of installation and a tough 26 gauge steel and baked on Hylar/Kynar paint finish ensure strength and longevity. An interlocking design allows Matterhorn to meet the hurricane zone winds in Miami-Dade, Florida.

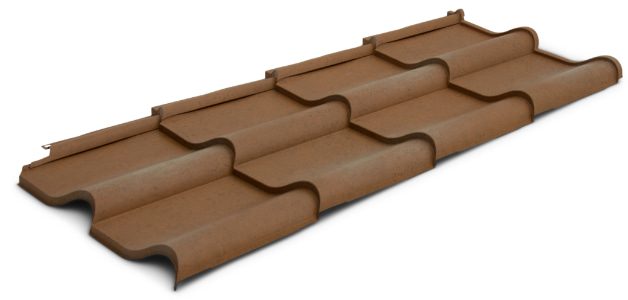

Matterhorn Tile Product Mhtile P001 Panel Side Angle

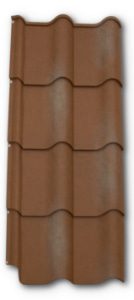

Matterhorn Tile Product Mhtile P002 Panel Overhead

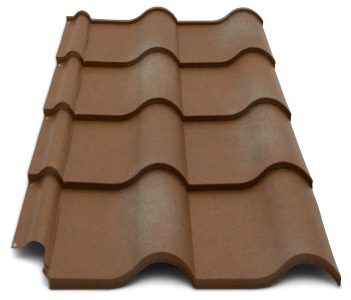

Matterhorn Tile Product Mhtile P003 Panel Front Angle

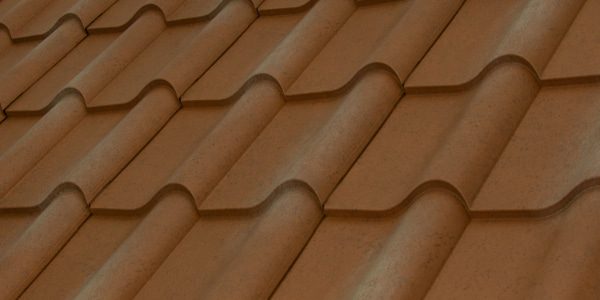

Matterhorn Tile Product Mhtile P004 Assembly Side Angle

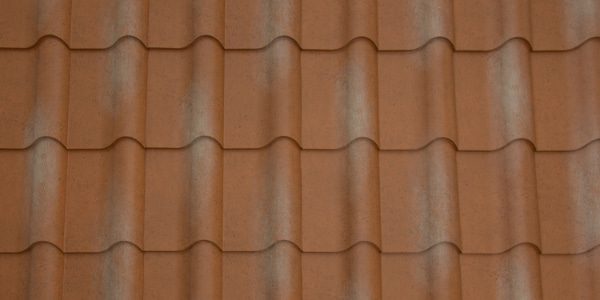

Matterhorn Tile Product Mhtile P005 Assembly Overhead

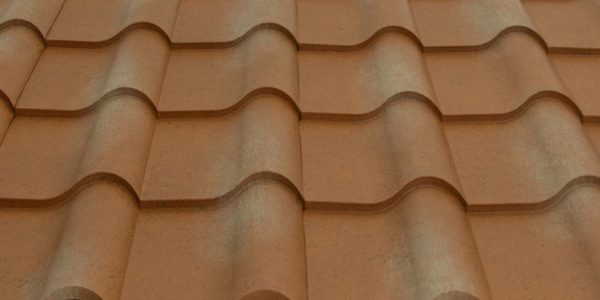

Matterhorn Tile Product Mhtile P006 Assembly Front Angle

Design & Size

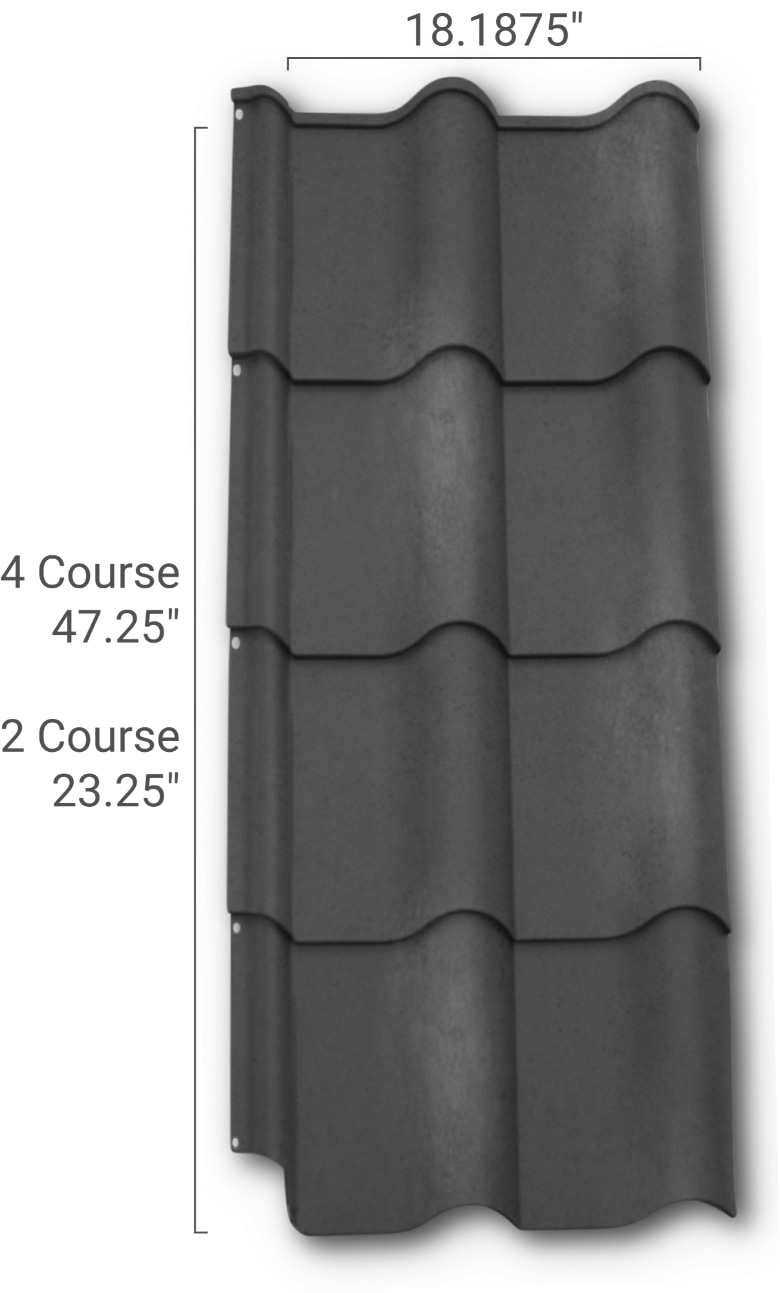

We provide Matterhorn Tile in 2 sizes. The primary sized tile is a 4-course tile that is 48.25″ high by 20.625″ wide and covers 47.25″ high x 18.1875″ wide once installed. The secondary sized tile (often used at the top course) is a 2-course tile that is 24″ high by 20.625″ wide and covers 23.25″ high x 18.1875″ wide once installed. Matterhorn Tile comes in 26 gauge standard.


Actual: 48.25"/24" high by 20.625" wide
Coverage: 47.25"/23.25" high by 18.1875" wide

Gauge & Weight

26 Gauge - 0.98 lb / Sq Ft

Warranty & Finish

Matterhorn Tile carries a lifetime limited warranty which covers manufacturing defects, paint, fade/chalk, hail, and 130mph wind. This warranty is transferable to 1 subsequent homeowner but becomes a 50 year warranty for defects, paint, hail and wind and 30 year warranty for fade/chalk. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel.

Finish & Warranty

Lifetime Limited
1 Time Transferable



Purpose & Use

Carefully crafted hidden fasteners and a tight-lock design make Matterhorn Tile a great choice for roofs as low as 3:12 (full ice & water shield underlayment required on slopes less than 4:12). Matterhorn Tile is designed for installation on solid deck applications.

Matterhorn Tile is most often chosen for residential applications but functions well on light commercial roofs also.

Matterhorn Tile is Miami-Dade and Florida Building Code approved as well as passing Texas Windstorm and UL90 wind uplift testing.

Minimum Slope



Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone


Light Commercial

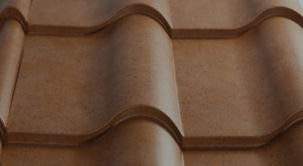

Brick Blend

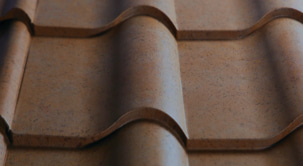

Tuscan Stone

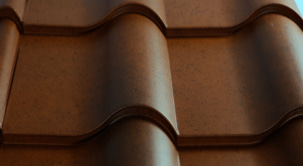

Weathered Canyon

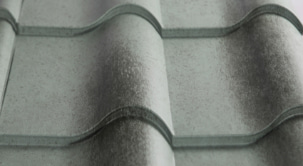

Weathered Sage

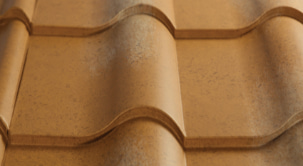

Weathered Terracotta

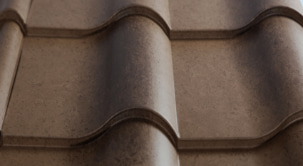

Weathered Sequoia

Matterhorn Tile® finishes are Hi-Reflective, reflecting 26-37% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.


Primarily PDF downloads, these resources provide general, installation, and testing data.

Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 21470.2
See report for requirements

Matterhorn Tile® finishes are Hi-Reflective, reflecting 26-37% of the sun’s rays.
