3/4″ Corrugated Metal Panel

Classic wavy corrugated panel - 3/4" high ribs.

Overview Design Gallery Colors Resources

Dependable & Adaptable Corrugated Panel

3/4″ Corrugated is a highly adaptable and widely used medium-profile panel designed to perform across a broad range of applications. Engineered with the durability required for both roofing and wall installations, it delivers dependable performance in residential, commercial, and agricultural projects.

With its clean profile and proven strength, 3/4″ Corrugated is a great alternative to 7/8″ corrugated, with faster production times and availability, and complements coastal, industrial, rustic, and modern architectural styles alike, making it a go-to solution for both functional performance and visual appeal.

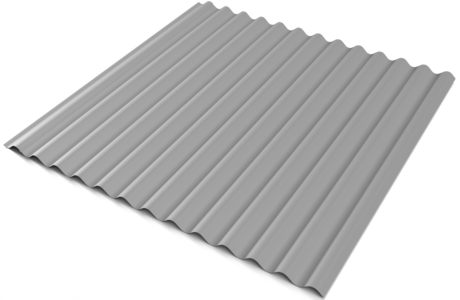

3 4 Corrugated - Photo - Product Shot - 001 - Panel Side Angle

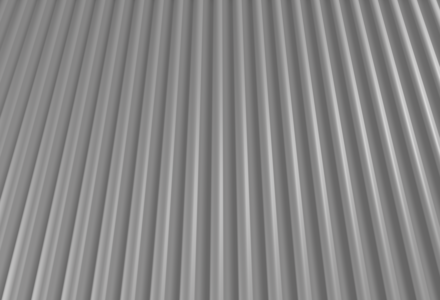

3 4 Corrugated - Photo - Product Shot - 006 - Assembly Front Angle

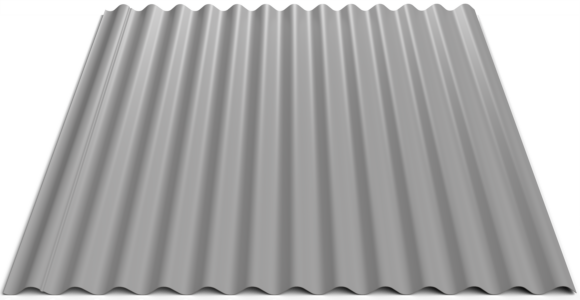

3 4 Corrugated - Photo - Product Shot - 003 - Panel Front Angle

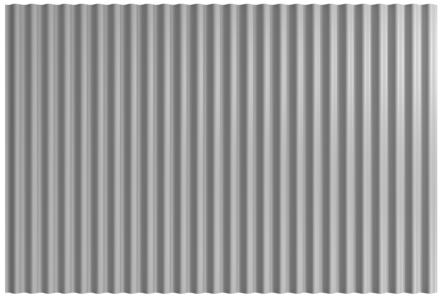

3 4 Corrugated - Photo - Product Shot - 005 - Assembly Overhead

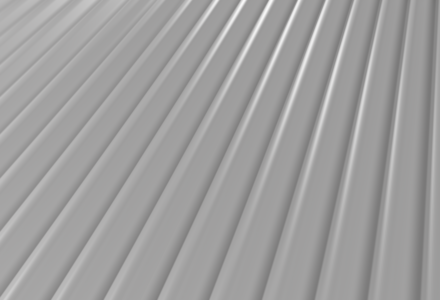

3 4 Corrugated - Photo - Product Shot - 004 - Assembly Side Angle

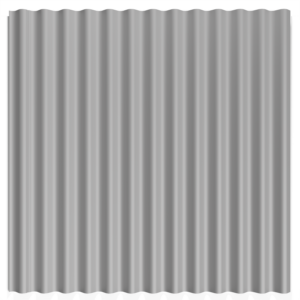

3 4 Corrugated - Photo - Product Shot - 002 - Panel Overhead

Design & Size

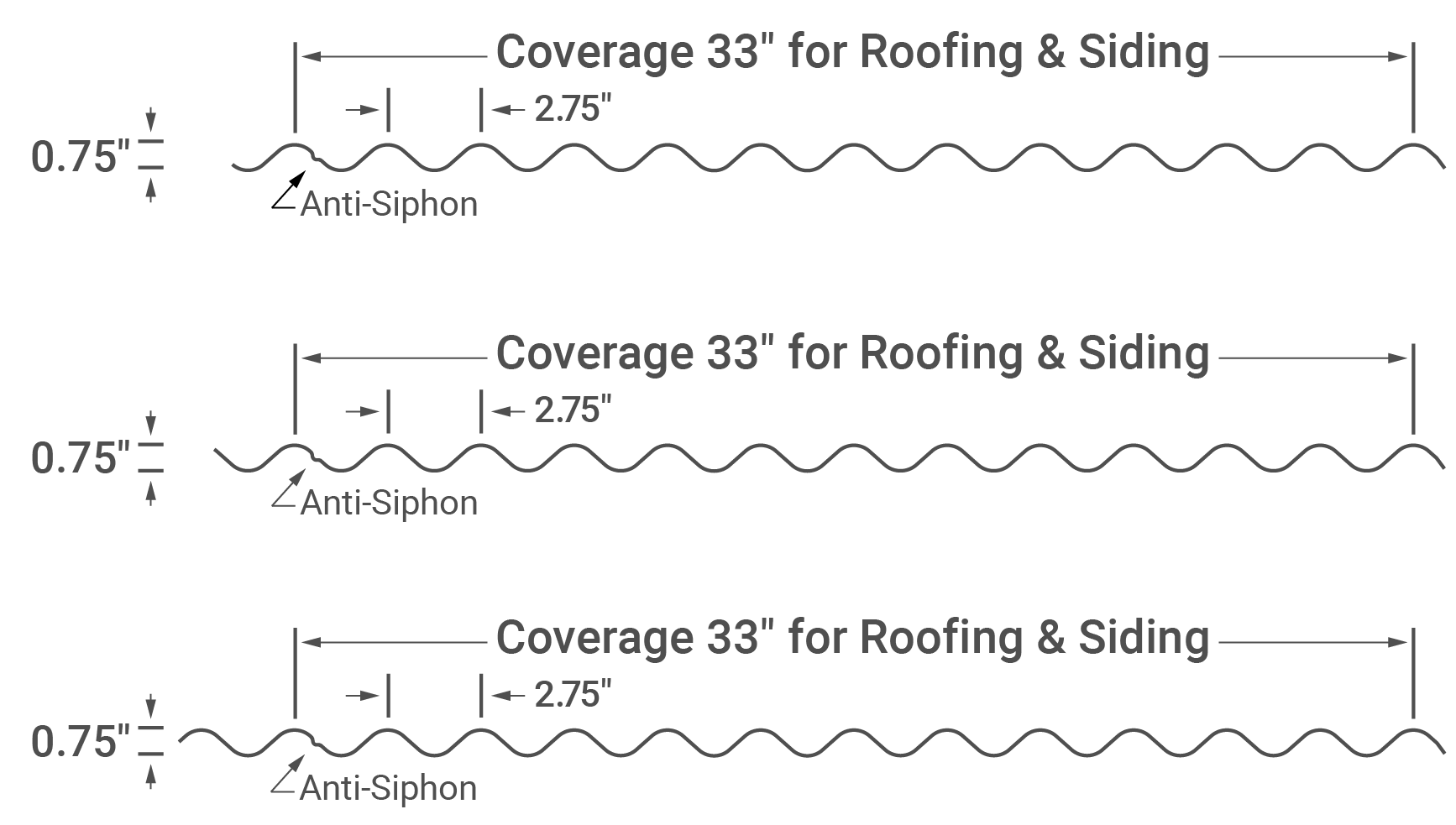

We provide 3/4″ Corrugated cut to the inch per specification. 3/4″ Corrugated design features .75″ high ribs, spaced 2.75″ on center. Three profiles are available based on your particular project needs. Depending on which profile is best for the project, ribs can have normal overlap or lapped 1 or 2 ribs. No matter the profile or use on roof or wall (siding) each will provide a 33″ coverage width.

3 4 Corrugated Product P007 Dimensions 768x180 01

Size

Roof: 33" Width, Walls: 33" Width (Coverage)
Cut to Inch From 3'-30' Recommended

Gauge & Weight

29 Gauge - 0.70 Lb / Sq Ft
26 Gauge - 0.90 Lb / Sq Ft
24 Gauge - 1.08 Lb / Sq Ft

Warranty & Finish

Painted 3/4″ Corrugated carries a 50 year paint warranty and 30 year fade/chalk warranty and has primer and Galvalume under the paint. Unpainted Galvalume carries a 45 year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat. Unpainted Galvalume is popular for commercial roofs, while the painted options are popular for roofs and walls of commercial and general-purpose buildings.

Finish & Warranty

Painted: 50 Years
Galvalume: 45 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

3/4″ Corrugated panels offer the ideal balance of flexibility and strength, allowing them to conform to gentle curves while delivering reliable performance for both roofing and wall applications nationwide.

Common applications for 3/4″ corrugated include interior and exterior walls, ceilings, siding, and roofing. Available in painted, Galvalume, and galvanized finishes, these panels provide a wide range of aesthetic options to complement virtually any design style.

Built around a high-tensile steel core, 3/4″ corrugated panels are engineered to perform in demanding environments, including regions exposed to sustained high winds like those found in Florida.
