Luxury without Limits

Pacific Tile is the result of continued refinements in stone coated metal roofing, sharing in incremental advances in both stamping and design technologies. Exceptional stone granule blends combine with a 26 gauge Galvalume steel core to deliver hurricane resistance and long term protection for your roof.

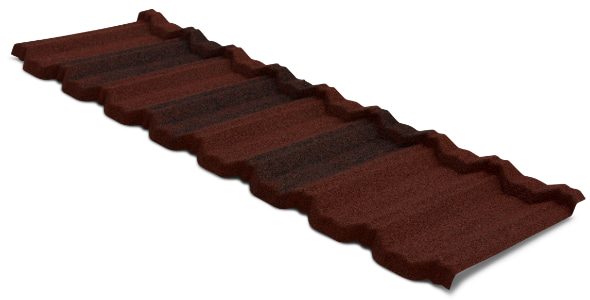

Pacific Tile Product Bpatile P001 Panel Side Angle

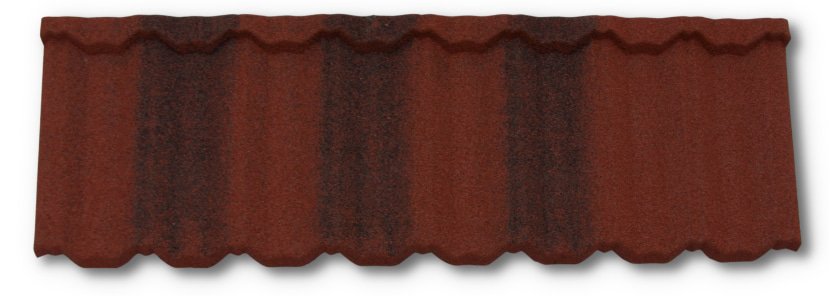

Pacific Tile Product Bpatile P002 Panel Overhead

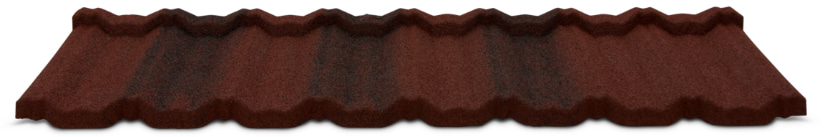

Pacific Tile Product Bpatile P003 Panel Front Angle

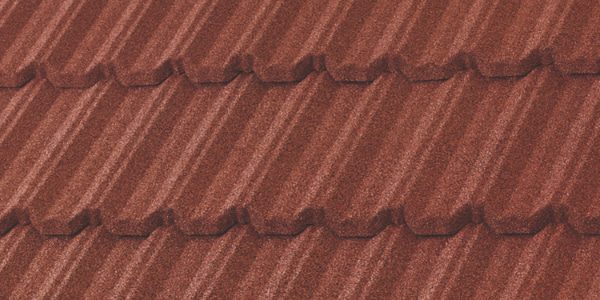

Pacific Tile Product Bpatile P004 Assembly Side Angle

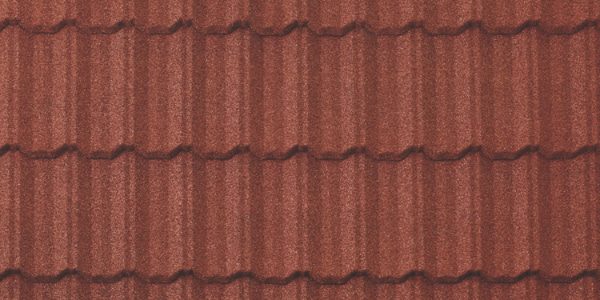

Pacific Tile Product Bpatile P005 Assembly Overhead

Design & Size

We provide Pacific Tile by the roofing square (100 square feet). Each shingle is 16.5” high by 52” wide and covers 14.5” high x 50” wide once installed. To cover one square requires 20 Pacific Tile panels.

Size

Actual: 16.5" high by 52" wide

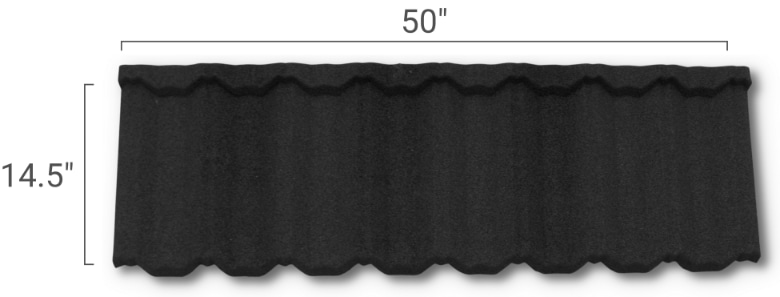

Coverage: 14.5" high by 50" wide

Gauge & Weight

26 Gauge – 1.5 lb / Sq Ft

Warranty & Finish

Pacific Tile carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.

Finish & Warranty

50 Years Limited
Fully Transferable

Reflectivity

4-14%
Vented Airspace Provides Insulation Layer

Purpose & Use

Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Pacific Tile a great choice for roofs as low as 3:12. Pacific Tile is designed for installation on solid deck applications – with or without a batten airspace.

You’ll find Pacific Tile most often on residential applications, but it also functions well for light commercial applications as well.

Pacific Tile is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3.12

Substrate

Solid Deck – Direct to Deck
Solid Deck – Over Battens

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

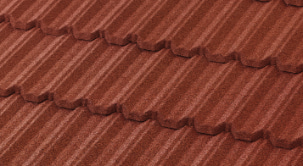

Spanish Red

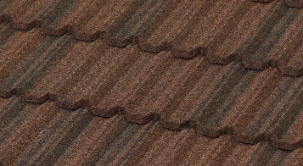

Barclay

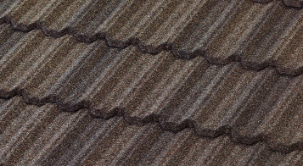

Timberwood

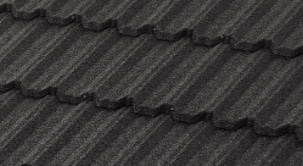

Charcoal

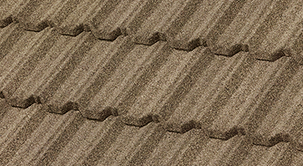

Harborwood

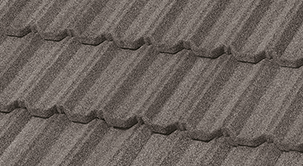

Stirling Gray

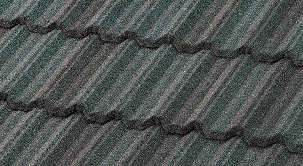

Sage Green (Special Order)

Pacific Tile® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 27408.1
See report for requirements
Hi-Reflective

Pacific Tile® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
