Central-Loc Standing Seam

Your best defense for low slopes.

Request Pricing

Low Slope Engineering

Central-Loc is designed first and foremost for commercial low slope applications. Massive 3″ ribs and factory applied sealant ensure a tight seal on slopes as low as 0.25:12.

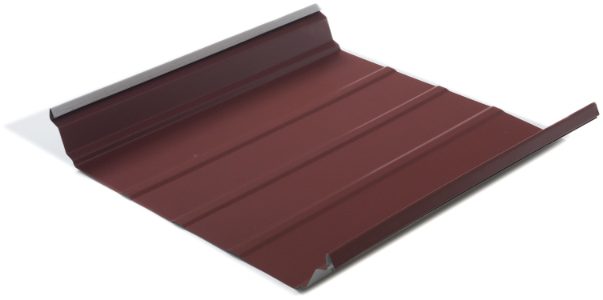

Central Loc Product Cl P001 Panel Side Angle

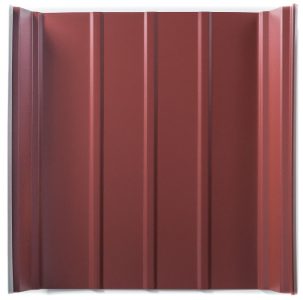

Central Loc Product Cl P002 Panel Overhead

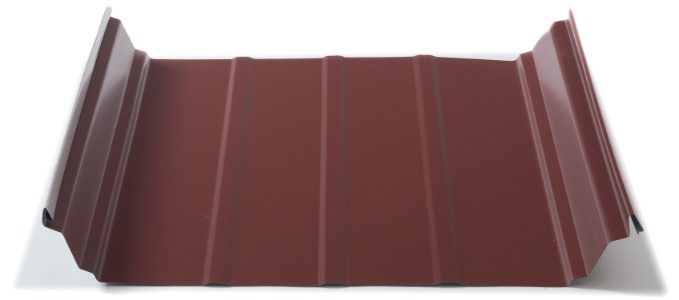

Central Loc Product Cl P003 Panel Front Angle

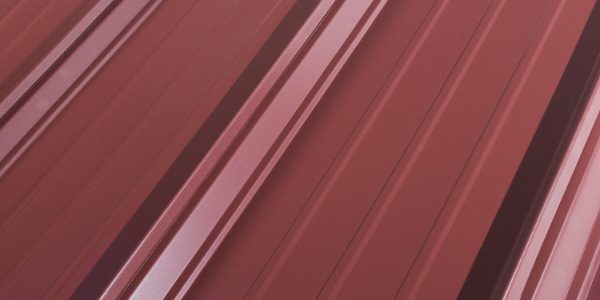

Central Loc Product Cl P004 Assembly Side Angle

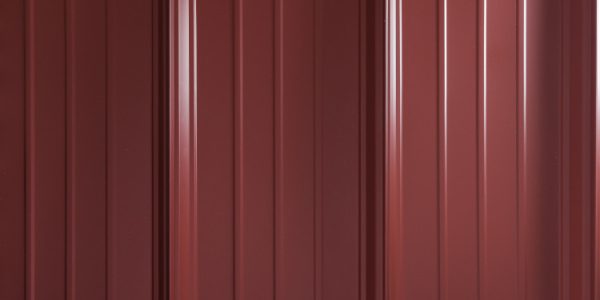

Central Loc Product Cl P005 Assembly Overhead

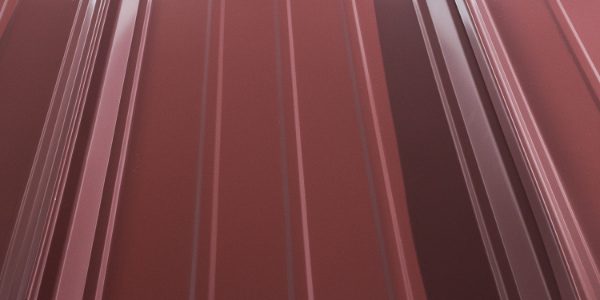

Central Loc Product Cl P006 Assembly Front Angle

Design & Size

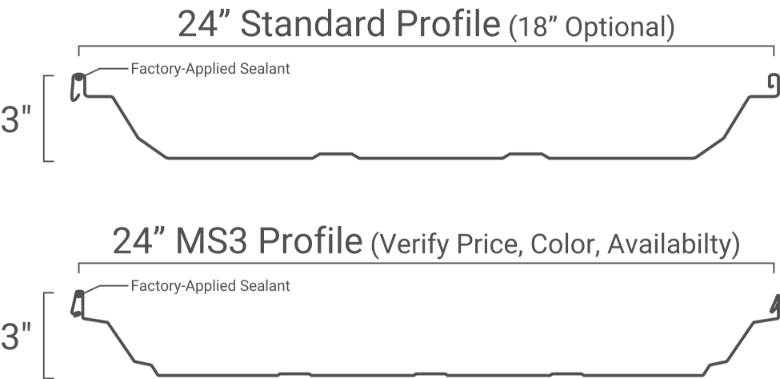

We provide Central-Loc custom cut to the inch per specifications. Any length is available from 5′ up to 45′. Central-Loc’s design features massive 3″ high ribs, spaced 24″ on center. Thickness options include 24 gauge as standard and 22 gauge as optional.

Size

24" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

24 Gauge - 1.14 Lb / Sq Ft

Warranty & Finish

Painted Central-Loc carries a 40 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 25 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 40 years
Galvalume: 25 years

Reflectivity

25-55%
Hi-Reflective

Purpose & Use

Central-Loc is a 3″ high clip standing seam most chosen for low slope commercial applications.

Central-Loc is designed for installation over open framing and solid decking and designed for use on slopes as low as 0.25:12.

A floating design allows for longer panels and end-lapping as needed.

Minimum Slope

0.25:12

Substrate

Solid Deck
Open Frame

Florida Approvals

Florida Building Code

Intent

Commercial
Industrial

Category

Colors
Galvalume (Non-Painted)
Brite
Ash
Slate Gray
Smoke
Sand
Beige
Tudor
Terratone
Bronze
Dark Bronze
Autumn
Roman
Verdigris
Evergreen

Painted Central-Loc® finishes are Hi-Reflective on steep slope roofs, reflecting 25-55% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Ul 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 14016.2
Min 24 ga., over open steel supports
Hi-Reflective

Painted Central-Loc finishes are Hi-Reflective on steep slope roofs, reflecting 25-55% of the sun’s rays.
